PI2795 ifm Electronic Electronic Components
Part#:PI2795
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

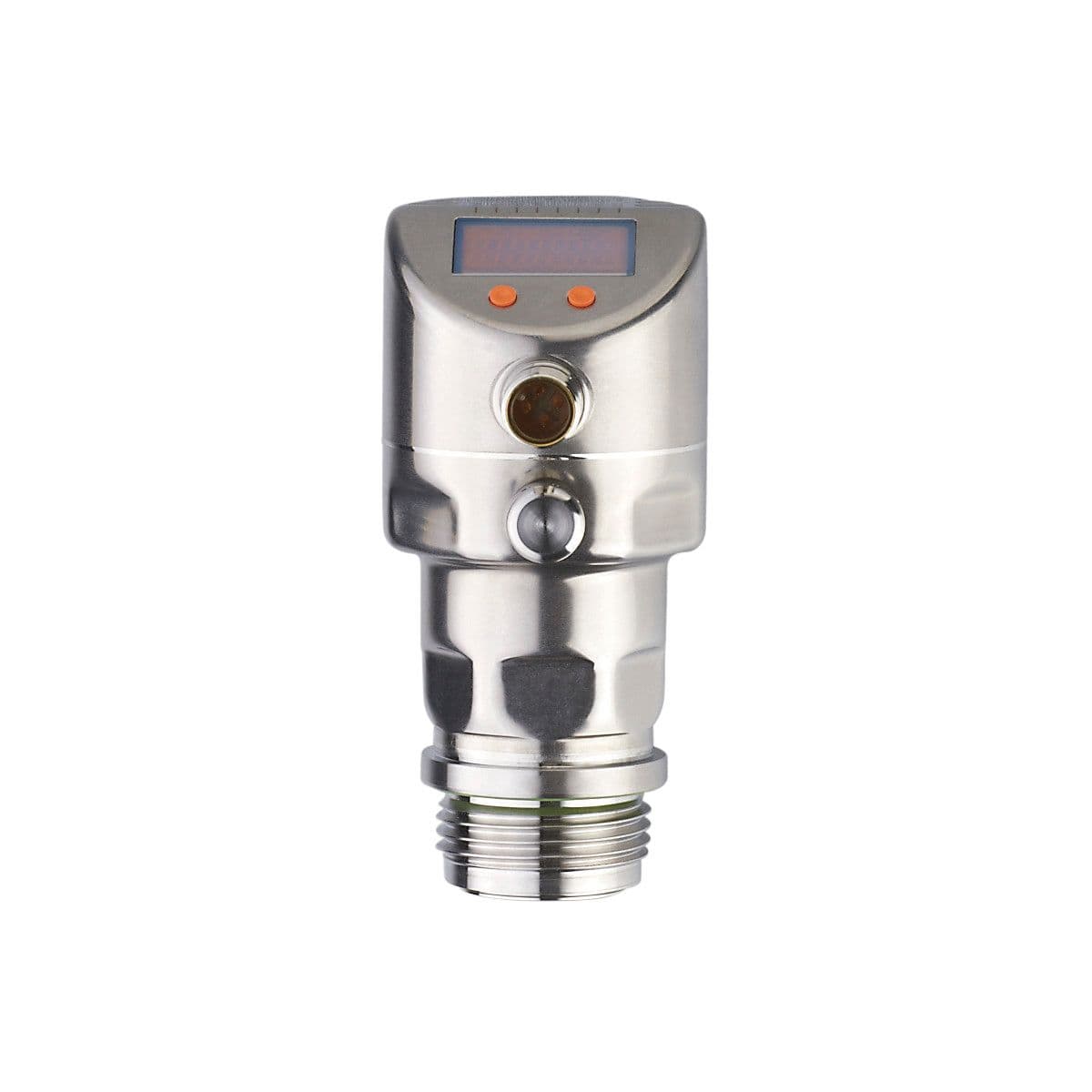

Flush pressure sensor with display, Robust stainless steel housing for use in the food and beverage industry, Output signal: switching signal; analog signal; IO-Link; (configurable), Measuring range: -1...4 bar -14.5...58 psi -100...400 kPa, Process conne
Product Details
- Switching frequency DC [Hz] 125
- Permanent current rating of switching output DC [mA] 250
- Max. load [Ω] (Ub - 10 V) / 20 mA
- Analog current output [mA] 4...20, invertible; (scalable)
- Max. voltage drop switching output DC [V] 2
- Number of analog outputs 1
- Short-circuit protection yes
- Overload protection yes
- Number of digital outputs 2
- Type of short-circuit protection yes (non-latching)
- Output function normally open / closed; (configurable)
- Electrical design PNP/NPN
- Total number of outputs 2
- Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
- Power-on delay time [s] 1
- Current consumption [mA] 3.6...21
- Operating voltage [V] 18...32 DC
- Integrated watchdog yes
- Reverse polarity protection yes
- MAWP (for applications according to CRN) [bar] 30
- Protection class III
- Min. insulation resistance [MΩ] 100; (500 V DC)
- No dead space yes
- Type of pressure relative pressure; vacuum
- Vacuum resistance [mbar] -1000
- Pressure rating 30 bar 435 psi 3000 kPa
- Process connection threaded connection G 1 external thread Aseptoflex Vario
- Min. bursting pressure 100 bar 1450 psi 10000 kPa
- System gold-plated contacts
- Application flush mountable for the food and beverage industry
- Media viscous media and liquids with suspended particles; liquids and gases
- Medium temperature [°C] -25...125; (145 max. 1h)
- Measuring range -1...4 bar -14.5...58 psi -100...400 kPa
- Output signal switching signal; analog signal; IO-Link; (configurable)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PI2795 ifm Electronic
