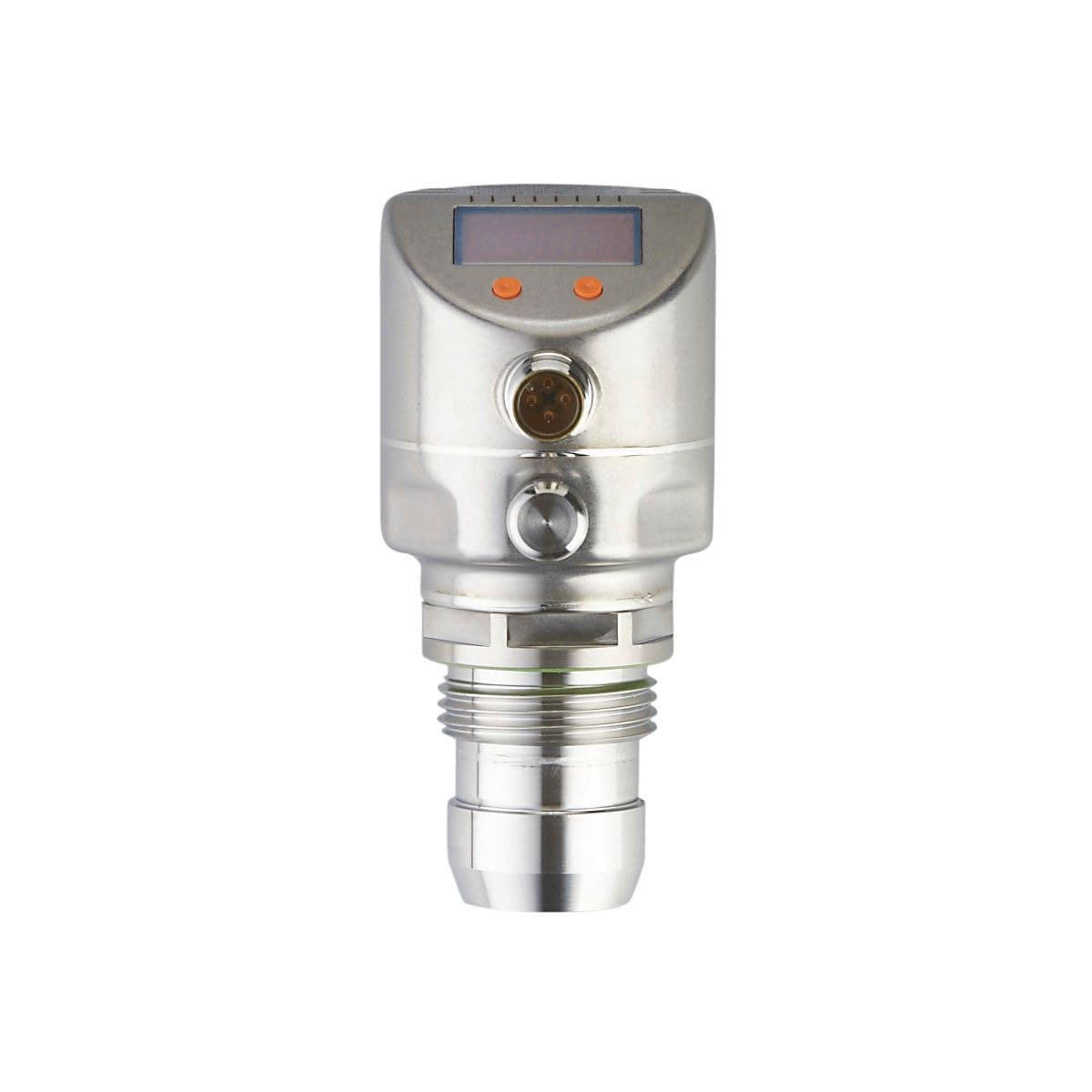

PI2815 ifm Electronic Electronic Components

Product Details

• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Type of pressure
  relative pressure; vacuum
• Integrated watchdog
  yes
• Electrical design
  PNP/NPN
• System
  gold-plated contacts
• No dead space
  yes
• Total number of outputs
  2
• Current consumption [mA]
  < 45
• Overload protection
  yes
• Process connection
  threaded connection G 1 external thread sealing cone
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of analog outputs
  1
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Protection class
  III
• Output function
  normally open / closed; (configurable)
• Permanent current rating of switching output DC [mA]
  250
• Min. bursting pressure
  100 bar 1450 psi 10000 kPa
• Power-on delay time [s]
  0.5
• Measuring range
  -1...6 bar -14.5...87 psi -100...600 kPa
• Vacuum resistance [mbar]
  -1000
Reverse polarity protection
yes
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Type of short-circuit protection
yes (non-latching)
Switching frequency DC [Hz]
125
MAWP (for applications according to CRN) [bar]
30
Pressure rating
30 bar 435 psi 3000 kPa
Short-circuit protection
yes
Application
flush mountable for the food and beverage industry
Operating voltage [V]
20...32 DC
Analog current output [mA]
4...20, invertible; (scalable)
Output signal
switching signal; analog signal; IO-Link; (configurable)
Max. load [Ω]
(Ub - 10 V) / 20 mA
Number of digital outputs
2
Max. voltage drop switching output DC [V]
2
