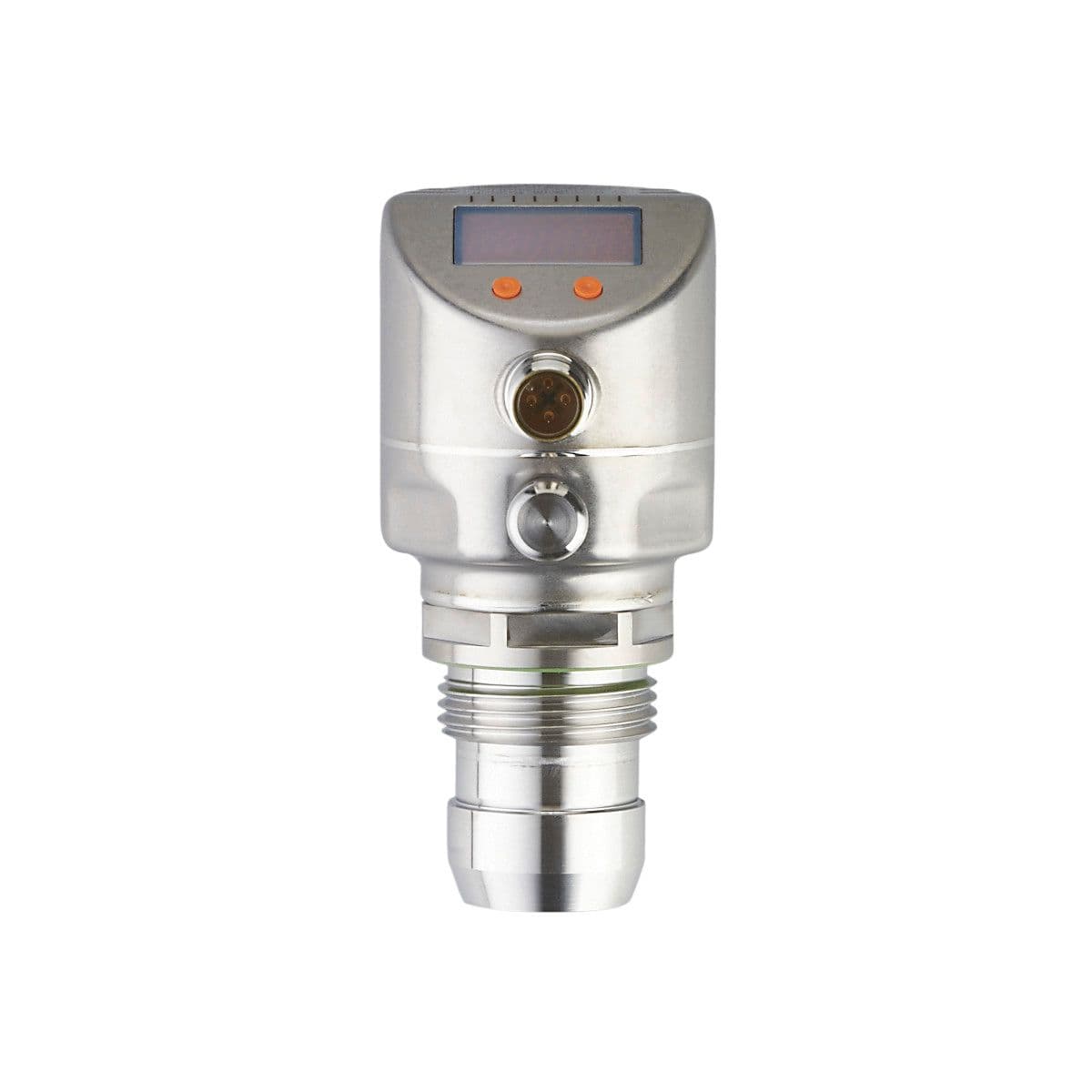

PI2898 ifm Electronic Electronic Components

Product Details

• Application
  flush mountable for the food and beverage industry
• Pressure rating
  6000 mbar 2400 inH2O 600 kPa
• MAWP (for applications according to CRN) [bar]
  10
• Reverse polarity protection
  yes
• Integrated watchdog
  yes
• Current consumption [mA]
  < 45
• Output function
  normally open / closed; (configurable)
• Total number of outputs
  2
• Electrical design
  PNP/NPN
• Number of analog outputs
  1
• Max. voltage drop switching output DC [V]
  2
• Process connection
  threaded connection G 1 external thread sealing cone
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Measuring range
  -0.0124...0.25 bar -12.4...250 mbar -5...100.4 inH2O -1.24...25 kPa
• Protection class
  III
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Permanent current rating of switching output DC [mA]
  250
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
Min. bursting pressure
30000 mbar 12044 inH2O 3000 kPa
Operating voltage [V]
20...32 DC
Number of digital outputs
2
Short-circuit protection
yes
Power-on delay time [s]
1
Analog current output [mA]
4...20, invertible; (scalable)
Type of short-circuit protection
yes (non-latching)
Media
viscous media and liquids with suspended particles; liquids and gases
Vacuum resistance [mbar]
-1000
Type of pressure
relative pressure
Overload protection
yes
Switching frequency DC [Hz]
125
System
gold-plated contacts
