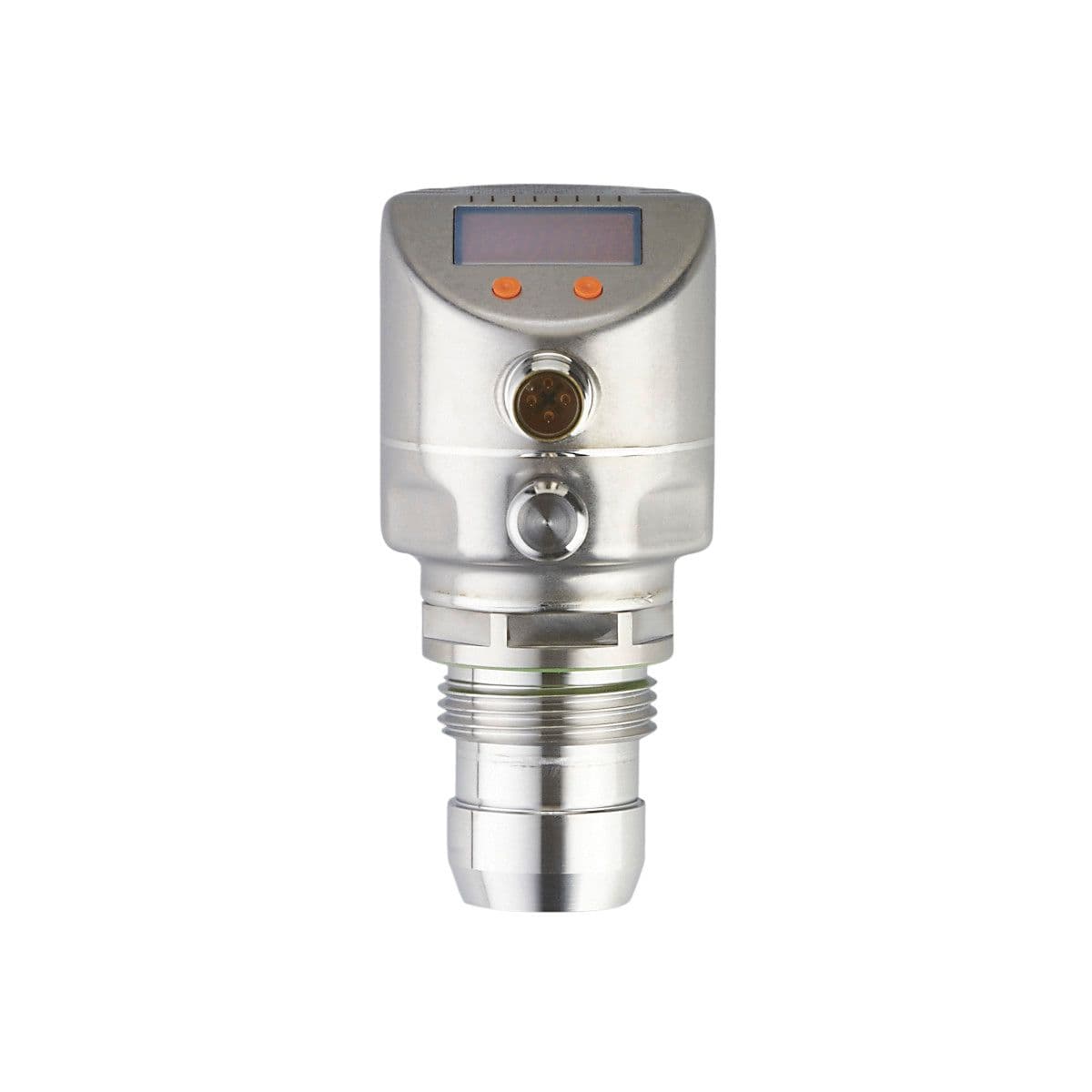

PI2817 ifm Electronic Electronic Components

Product Details

• Power-on delay time [s]
  0.5
• Measuring range
  -0.1...1.6 bar -100...1600 mbar -1.46...23.2 psi -10...160 kPa
• Analog current output [mA]
  4...20, invertible; (scalable)
• Type of pressure
  relative pressure
• Overload protection
  yes
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Integrated watchdog
  yes
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Permanent current rating of switching output DC [mA]
  250
• Protection class
  III
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Max. voltage drop switching output DC [V]
  2
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Switching frequency DC [Hz]
  125
• Min. bursting pressure
  40000 mbar 580 psi 4000 kPa
• No dead space
  yes
• Output function
  normally open / closed; (configurable)
• System
  gold-plated contacts
• Vacuum resistance [mbar]
  -1000
• Total number of outputs
  2
Type of short-circuit protection
yes (non-latching)
Process connection
threaded connection G 1 external thread sealing cone
Min. insulation resistance [MΩ]
100; (500 V DC)
Current consumption [mA]
< 45
Electrical design
PNP/NPN
Short-circuit protection
yes
Reverse polarity protection
yes
Number of analog outputs
1
Pressure rating
15000 mbar 215 psi 1500 kPa
Max. load [Ω]
(Ub - 10 V) / 20 mA
Application
flush mountable for the food and beverage industry
MAWP (for applications according to CRN) [bar]
15
Operating voltage [V]
18...32 DC
Number of digital outputs
2
