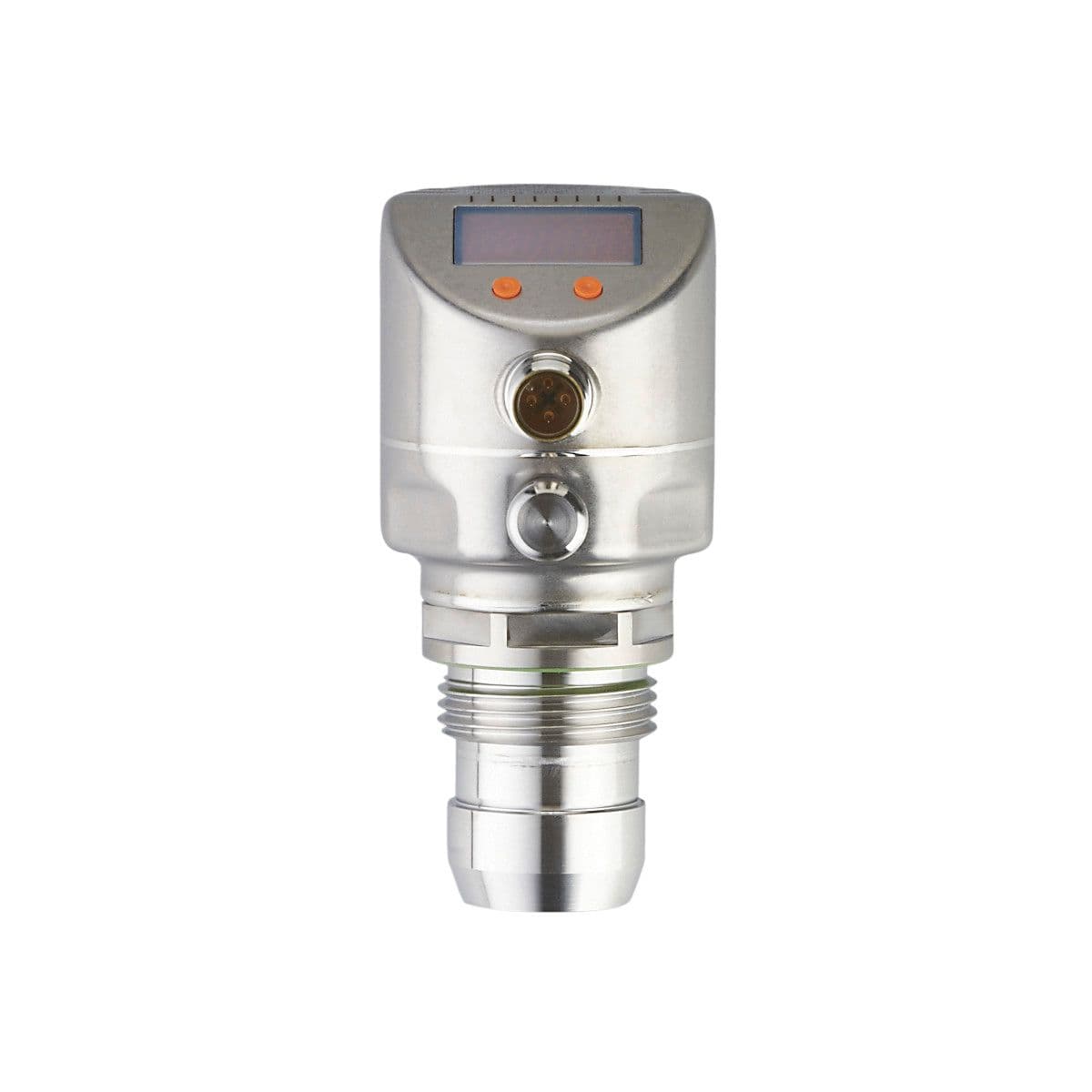

PI2889 ifm Electronic Electronic Components

Product Details

• System
  gold-plated contacts
• Application
  flush mountable for the food and beverage industry
• Media
  viscous media and liquids with suspended particles; liquids and gases
• MAWP (for applications according to CRN) [bar]
  4
• Overload protection
  yes
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Short-circuit protection
  yes
• Reverse polarity protection
  yes
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Type of short-circuit protection
  yes (non-latching)
• Protection class
  III
• Total number of outputs
  2
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Integrated watchdog
  yes
• Number of analog outputs
  1
• Operating voltage [V]
  18...32 DC
• Electrical design
  PNP/NPN
• Max. voltage drop switching output DC [V]
  2
• Number of digital outputs
  2
• Switching frequency DC [Hz]
  125
Power-on delay time [s]
0.5
Output function
normally open / closed; (configurable)
Permanent current rating of switching output DC [mA]
250
Process connection
threaded connection G 1 external thread sealing cone
Current consumption [mA]
< 45
Pressure rating
4000 mbar 1606 inH2O 400 kPa
Medium temperature [°C]
-25...125; (145 max. 1h)
Output signal
switching signal; analog signal; IO-Link; (configurable)
Analog current output [mA]
4...20, invertible; (scalable)
Type of pressure
relative pressure
Vacuum resistance [mbar]
-1000
Measuring range
-0.005...0.1 bar -5...100 mbar -2...40.16 inH2O -0.5...10 kPa
Min. bursting pressure
30000 mbar 12044 inH2O 3000 kPa
