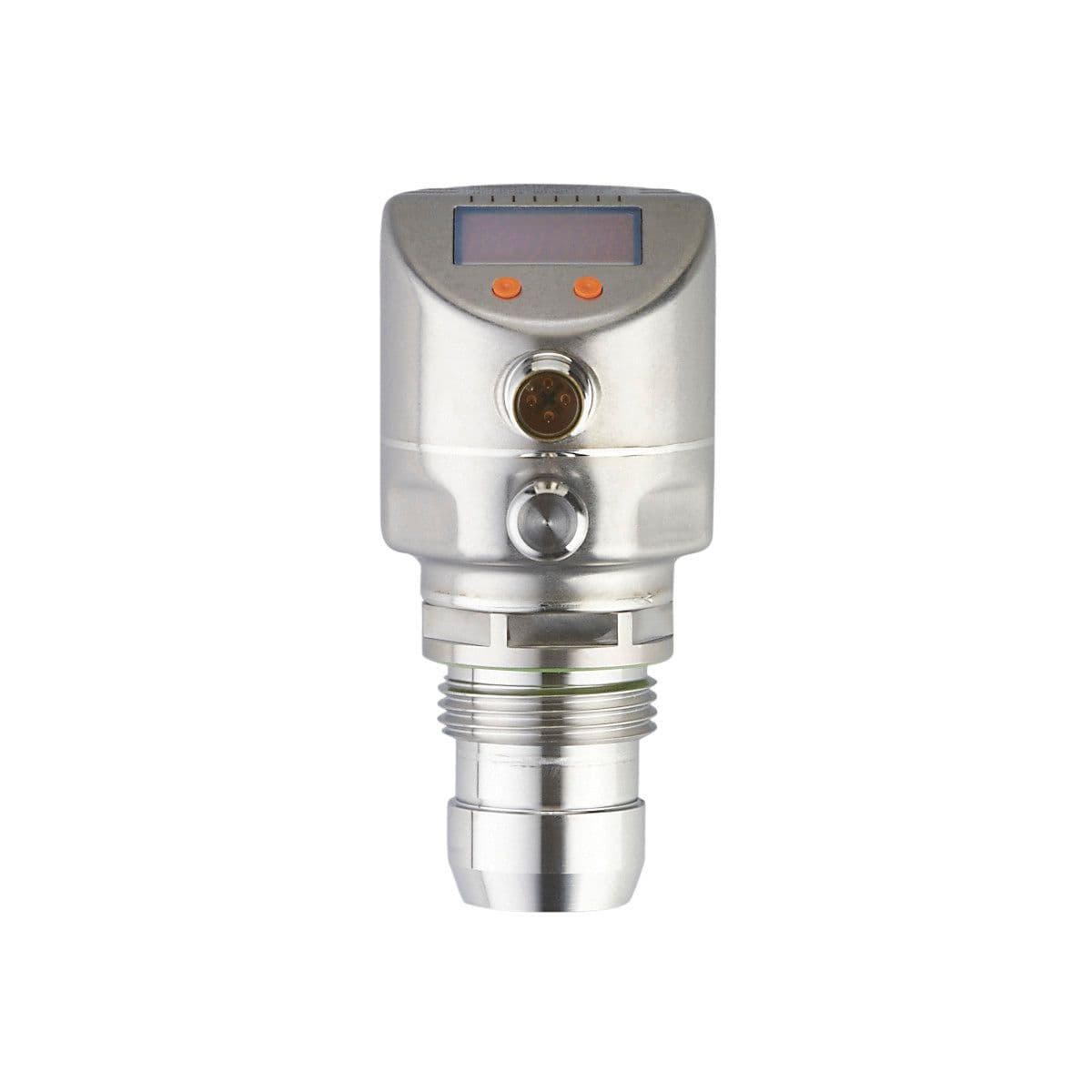

PI2897 ifm Electronic Electronic Components

Product Details

• Application
  flush mountable for the food and beverage industry
• Short-circuit protection
  yes
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Number of digital outputs
  2
• Process connection
  threaded connection G 1 external thread sealing cone
• MAWP (for applications according to CRN) [bar]
  10
• Overload protection
  yes
• System
  gold-plated contacts
• Type of pressure
  relative pressure
• Current consumption [mA]
  < 45
• Permanent current rating of switching output DC [mA]
  250
• Reverse polarity protection
  yes
• Max. load [Ω]
  300
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Type of short-circuit protection
  yes (non-latching)
• Min. bursting pressure
  30000 mbar 435 psi 3000 kPa
• Analog current output [mA]
  4...20, invertible; (scalable)
• Output function
  normally open / closed; (configurable)
• Switching frequency DC [Hz]
  125
Pressure rating
10000 mbar 145 psi 1000 kPa
Operating voltage [V]
18...32 DC
Vacuum resistance [mbar]
-1000
Output signal
switching signal; analog signal; IO-Link; (configurable)
Number of analog outputs
1
Power-on delay time [s]
0.5
Integrated watchdog
yes
Electrical design
PNP/NPN
Measuring range
-0.05...1 bar -50...1000 mbar -0.73...14.5 psi -5...100 kPa
Protection class
III
Total number of outputs
2
Max. voltage drop switching output DC [V]
2
Media
viscous media and liquids with suspended particles; liquids and gases
