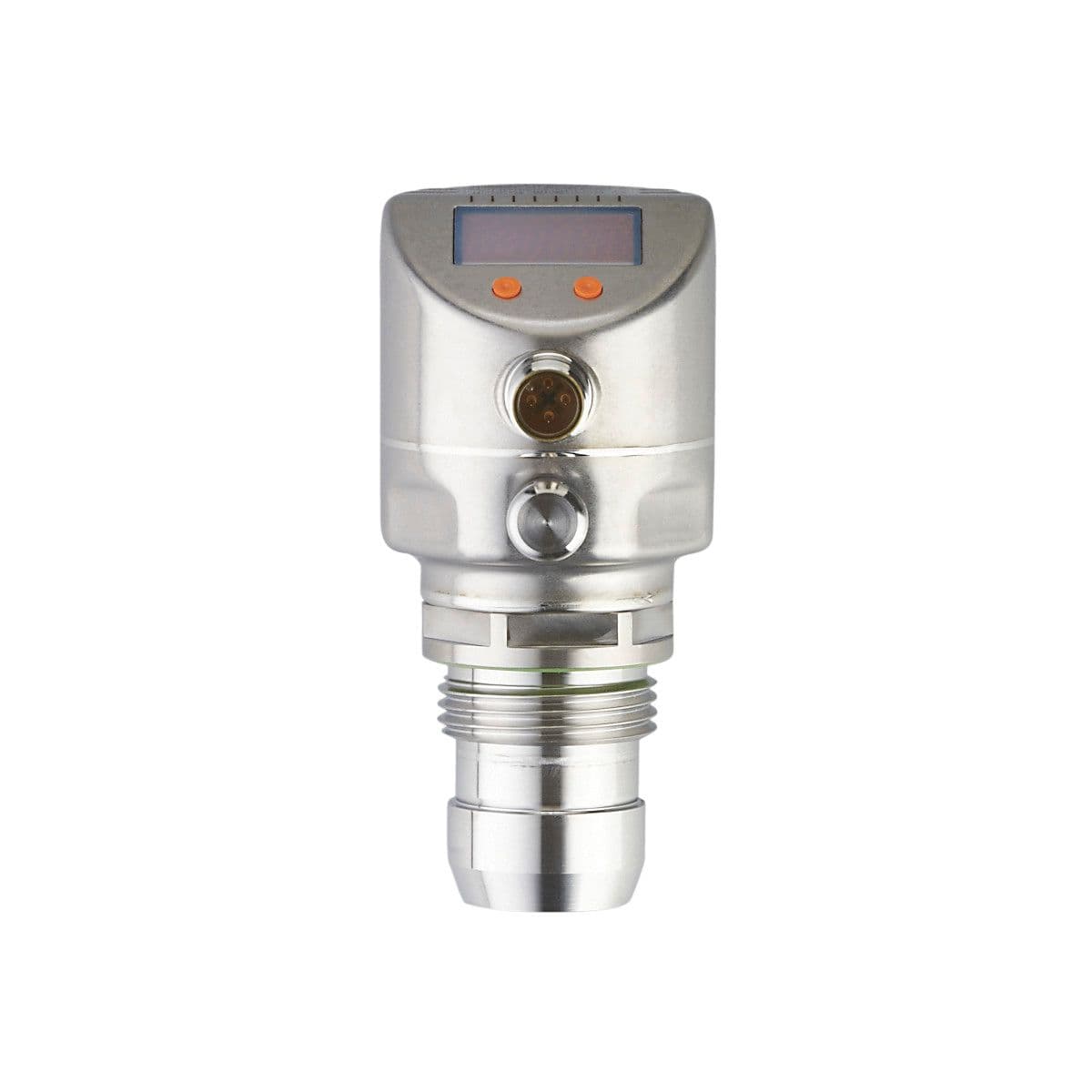

PI2896 ifm Electronic Electronic Components

Product Details

• Process connection
  threaded connection G 1 external thread sealing cone
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Max. voltage drop switching output DC [V]
  2
• Type of pressure
  relative pressure
• Current consumption [mA]
  < 45
• Integrated watchdog
  yes
• Output function
  normally open / closed; (configurable)
• Total number of outputs
  2
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Measuring range
  -0.124...2.5 bar -124...2500 mbar -1.8...36.27 psi -12.4...250 kPa
• Permanent current rating of switching output DC [mA]
  250
• Operating voltage [V]
  18...32 DC
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Short-circuit protection
  yes
• Min. bursting pressure
  50 bar 725 psi 5000 kPa
• MAWP (for applications according to CRN) [bar]
  20
• Switching frequency DC [Hz]
  125
• Protection class
  III
Analog current output [mA]
4...20, invertible; (scalable)
Medium temperature [°C]
-25...125; (145 max. 1h)
Vacuum resistance [mbar]
-1000
Number of analog outputs
1
Application
flush mountable for the food and beverage industry
System
gold-plated contacts
Reverse polarity protection
yes
Electrical design
PNP/NPN
Overload protection
yes
Pressure rating
20 bar 290 psi 2000 kPa
Power-on delay time [s]
0.5
Number of digital outputs
2
Type of short-circuit protection
yes (non-latching)
