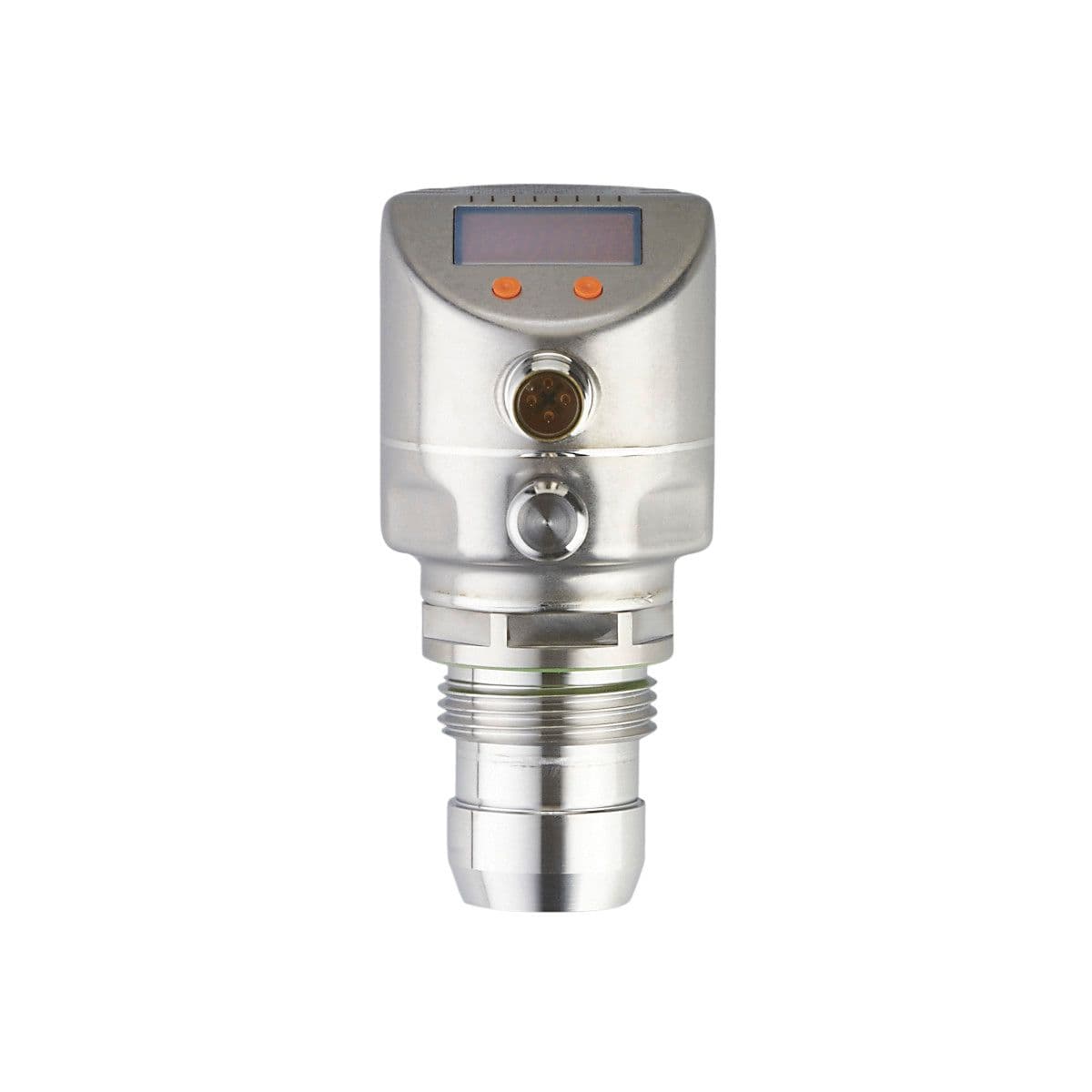

PI2899 ifm Electronic Electronic Components

Product Details

• System
  gold-plated contacts
• Integrated watchdog
  yes
• Electrical design
  PNP/NPN
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Power-on delay time [s]
  0.5
• Analog current output [mA]
  4...20, invertible; (scalable)
• Switching frequency DC [Hz]
  125
• Process connection
  threaded connection G 1 external thread sealing cone
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Current consumption [mA]
  < 45
• Number of digital outputs
  2
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Application
  flush mountable for the food and beverage industry
• MAWP (for applications according to CRN) [bar]
  10
• Output function
  normally open / closed; (configurable)
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Reverse polarity protection
  yes
• Total number of outputs
  2
• Type of short-circuit protection
  yes (non-latching)
• Pressure rating
  10000 mbar 145 psi 1000 kPa
Protection class
III
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Number of analog outputs
1
Permanent current rating of switching output DC [mA]
250
Measuring range
-1...1 bar -1000...1000 mbar -14.5...14.5 psi -100...100 kPa
Type of pressure
relative pressure; vacuum
Overload protection
yes
Max. voltage drop switching output DC [V]
2
Short-circuit protection
yes
Vacuum resistance [mbar]
-1000
Output signal
switching signal; analog signal; IO-Link; (configurable)
Operating voltage [V]
18...32 DC
Min. bursting pressure
30000 mbar 435 psi 3000 kPa
