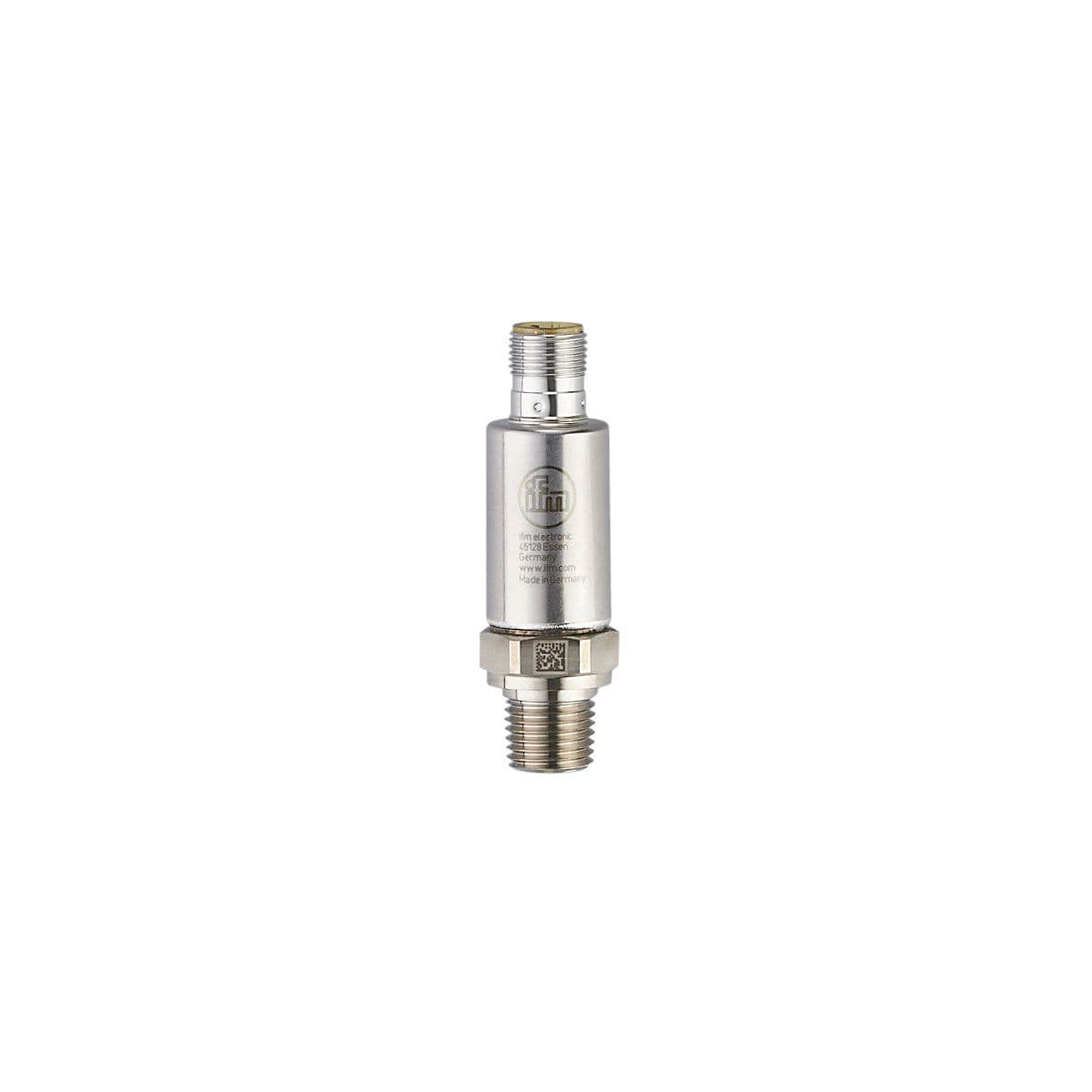

PV7600 ifm Electronic Electronic Components

Product Details

• Measuring element
  metallic thin film cell
• Vacuum resistance [mbar]
  -1000
• Total number of outputs
  2
• Type of short-circuit protection
  yes (non-latching)
• Process connection
  threaded connection 1/4" NPT external thread Internal thread:M5
• Operating voltage [V]
  18...30 DC
• Power-on delay time [s]
  < 0.3
• Overload protection
  yes
• Medium temperature [°C]
  -40...90
• Reverse polarity protection
  yes
• Switching frequency DC [Hz]
  < 170
• Min. bursting pressure
  1700 bar 24655 psi 170 MPa
• Current consumption [mA]
  < 15
• Electrical design
  PNP/NPN
• Measuring range
  0...400 bar 0...5800 psi 0...40 MPa
• Type of pressure
  relative pressure
• Max. voltage drop switching output DC [V]
  2
• Note on pressure rating
  static
• Number of inputs and outputs
  Number of digital outputs: 2
• Output signal
  switching signal; IO-Link; (configurable)
Short-circuit protection
yes
Pressure rating
1000 bar 14500 psi 100 Mpa
Protection class
III
Number of digital outputs
2
Media
liquids and gases
Min. insulation resistance [MΩ]
100; (500 V DC)
Permanent current rating of switching output DC [mA]
100
Application
for industrial applications
MAWP (for applications according to CRN) [bar]
840
Output function
normally open / closed; (configurable)
