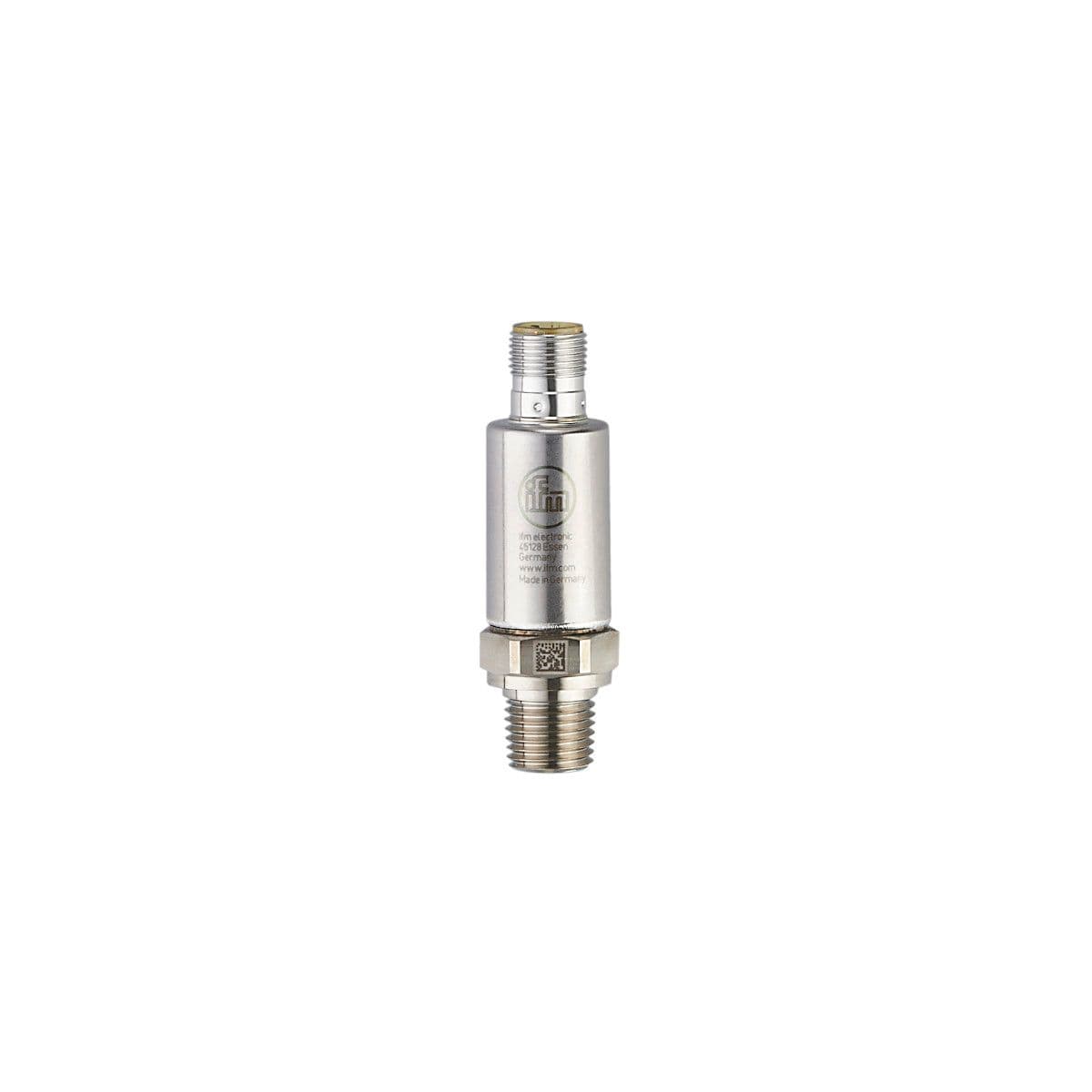

PV7604 ifm Electronic Electronic Components
Part#:PV7604
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure switch with IO-Link, Output signal: switching signal; IO-Link; (configurable), Measuring range: -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa, Process connection: threaded connection 1/4" NPT external thread Internal thread:M5, Measuri
Product Details
- Number of digital outputs 2
- Switching frequency DC [Hz] < 170
- Short-circuit protection yes
- Overload protection yes
- Permanent current rating of switching output DC [mA] 100
- Type of short-circuit protection yes (non-latching)
- Max. voltage drop switching output DC [V] 2
- Output function normally open / closed; (configurable)
- Power-on delay time [s] < 0.3
- Electrical design PNP/NPN
- Total number of outputs 2
- Number of inputs and outputs Number of digital outputs: 2
- Operating voltage [V] 18...30 DC
- Current consumption [mA] < 15
- Reverse polarity protection yes
- Protection class III
- MAWP (for applications according to CRN) [bar] 25
- Note on pressure rating static
- Type of pressure relative pressure
- Vacuum resistance [mbar] -1000
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Medium temperature [°C] -40...90
- Pressure rating 25 bar 360 psi 2.5 Mpa
- Measuring element metallic thin film cell
- Min. bursting pressure 300 bar 4350 psi 30 MPa
- Media liquids and gases
- Application for industrial applications
- Measuring range -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
- Process connection threaded connection 1/4" NPT external thread Internal thread:M5
- Output signal switching signal; IO-Link; (configurable)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
