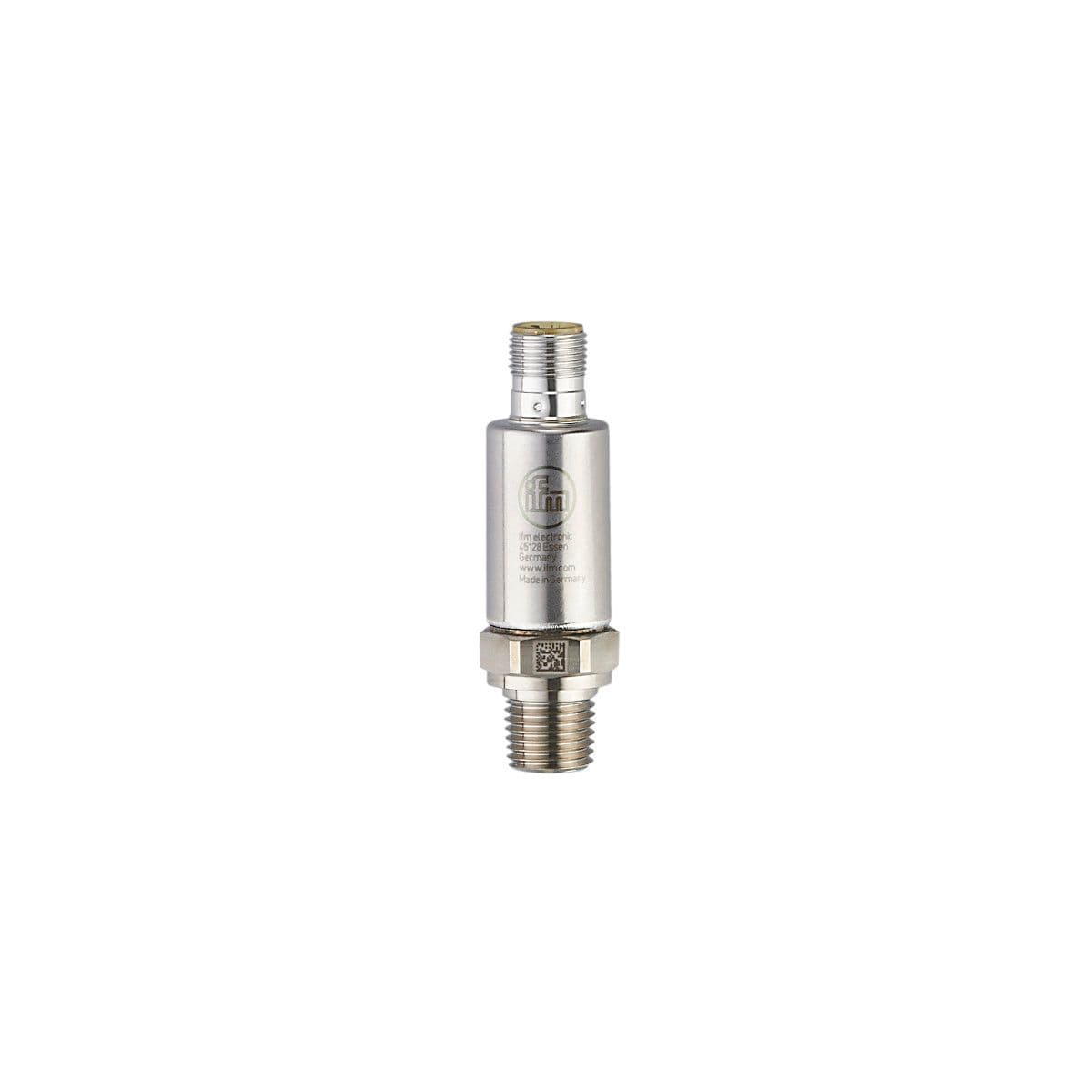

PV7601 ifm Electronic Electronic Components

Product Details

• Application
  for industrial applications
• Medium temperature [°C]
  -40...90
• Measuring element
  metallic thin film cell
• Process connection
  threaded connection 1/4" NPT external thread Internal thread:M5
• Measuring range
  0...250 bar 0...3626 psi 0...25 MPa
• Pressure rating
  625 bar 9060 psi 62.5 Mpa
• Note on pressure rating
  static
• Media
  liquids and gases
• Output signal
  switching signal; IO-Link; (configurable)
• MAWP (for applications according to CRN) [bar]
  625
• Reverse polarity protection
  yes
• Output function
  normally open / closed; (configurable)
• Min. bursting pressure
  1200 bar 17400 psi 120 MPa
• Operating voltage [V]
  18...30 DC
• Total number of outputs
  2
• Overload protection
  yes
• Vacuum resistance [mbar]
  -1000
• Max. voltage drop switching output DC [V]
  2
• Type of pressure
  relative pressure
• Number of digital outputs
  2
Current consumption [mA]
< 15
Electrical design
PNP/NPN
Min. insulation resistance [MΩ]
100; (500 V DC)
Permanent current rating of switching output DC [mA]
100
Protection class
III
Short-circuit protection
yes
Number of inputs and outputs
Number of digital outputs: 2
Type of short-circuit protection
yes (non-latching)
Power-on delay time [s]
< 0.3
Switching frequency DC [Hz]
< 170
