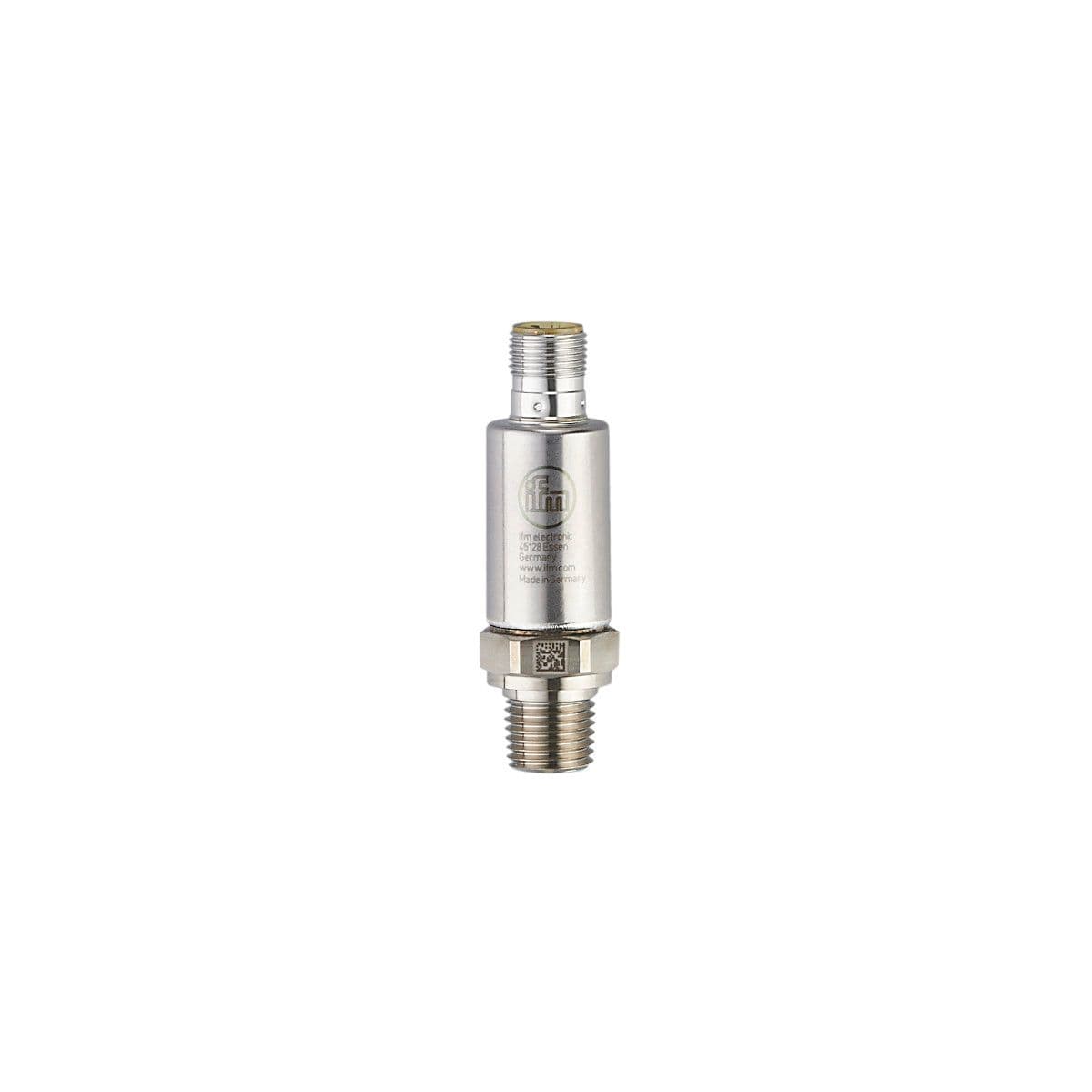

PV7603 ifm Electronic Electronic Components

Product Details

• Measuring range
  -1...25 bar -14.6...362.6 psi -0.1...2.5 MPa
• Process connection
  threaded connection 1/4" NPT external thread Internal thread:M5
• Power-on delay time [s]
  < 0.3
• Switching frequency DC [Hz]
  < 170
• Measuring element
  metallic thin film cell
• Current consumption [mA]
  < 15
• Output function
  normally open / closed; (configurable)
• Media
  liquids and gases
• Protection class
  III
• Max. voltage drop switching output DC [V]
  2
• Note on pressure rating
  static
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Output signal
  switching signal; IO-Link; (configurable)
• Permanent current rating of switching output DC [mA]
  100
• Type of short-circuit protection
  yes (non-latching)
• Application
  for industrial applications
• Type of pressure
  relative pressure
• Total number of outputs
  2
• Min. bursting pressure
  600 bar 8700 psi 60 MPa
• MAWP (for applications according to CRN) [bar]
  65
Number of digital outputs
2
Pressure rating
65 bar 940 psi 6.5 Mpa
Vacuum resistance [mbar]
-1000
Electrical design
PNP/NPN
Reverse polarity protection
yes
Short-circuit protection
yes
Number of inputs and outputs
Number of digital outputs: 2
Overload protection
yes
Operating voltage [V]
18...30 DC
Medium temperature [°C]
-40...90
