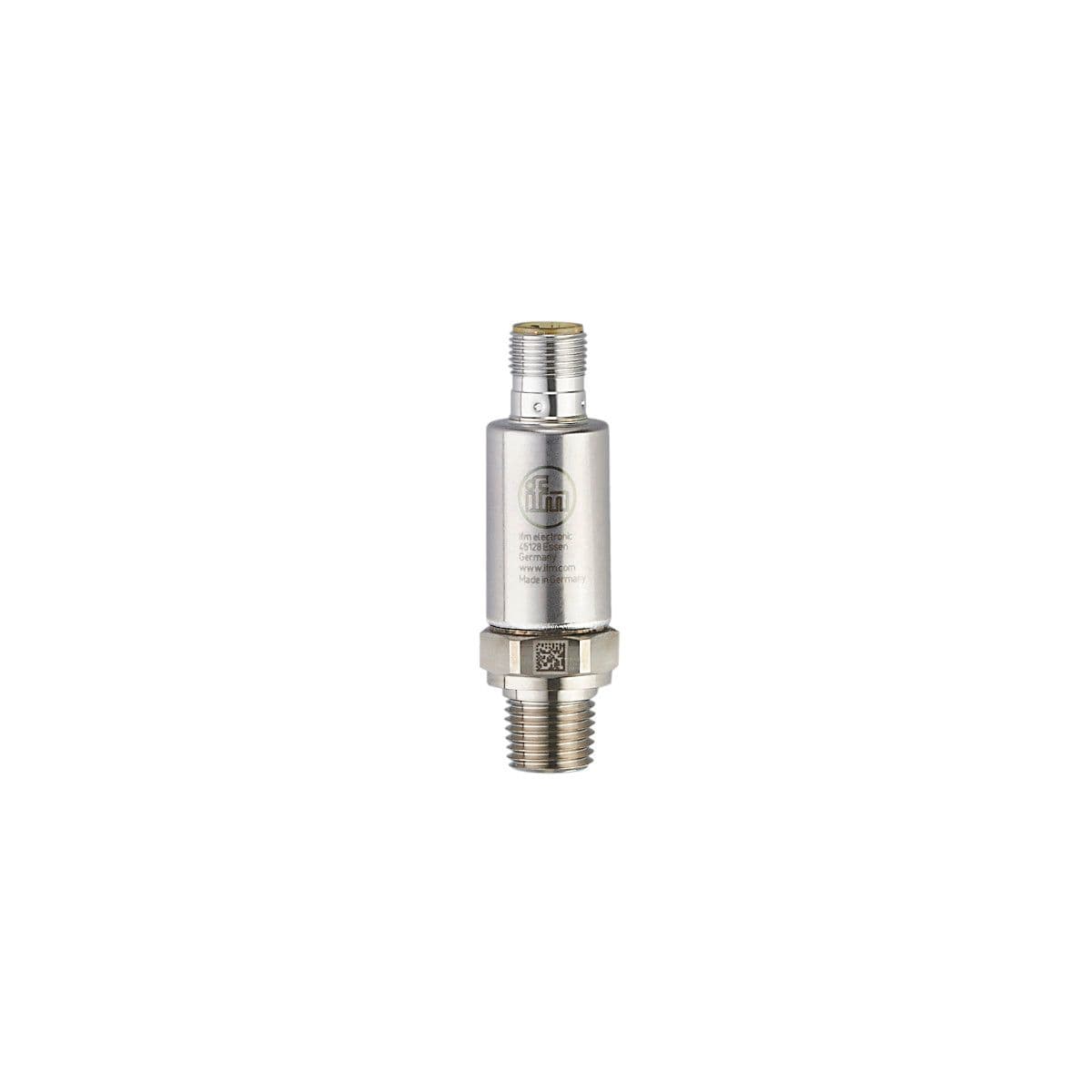

PV7602 ifm Electronic Electronic Components
Part#:PV7602
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure switch with IO-Link, Output signal: switching signal; IO-Link; (configurable), Measuring range: 0...100 bar 0...1450 psi 0...10 MPa, Process connection: threaded connection 1/4" NPT external thread Internal thread:M5, Measuring element: metallic
Product Details
- Type of short-circuit protection yes (non-latching)
- Short-circuit protection yes
- Overload protection yes
- Max. voltage drop switching output DC [V] 2
- Output function normally open / closed; (configurable)
- Number of digital outputs 2
- Switching frequency DC [Hz] < 170
- Total number of outputs 2
- Electrical design PNP/NPN
- Permanent current rating of switching output DC [mA] 100
- Current consumption [mA] < 15
- Number of inputs and outputs Number of digital outputs: 2
- Power-on delay time [s] < 0.3
- Protection class III
- Reverse polarity protection yes
- Operating voltage [V] 18...30 DC
- MAWP (for applications according to CRN) [bar] 250
- Vacuum resistance [mbar] -1000
- Note on pressure rating static
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Type of pressure relative pressure
- Media liquids and gases
- Application for industrial applications
- Measuring element metallic thin film cell
- Output signal switching signal; IO-Link; (configurable)
- Pressure rating 250 bar 3625 psi 25 Mpa
- Process connection threaded connection 1/4" NPT external thread Internal thread:M5
- Measuring range 0...100 bar 0...1450 psi 0...10 MPa
- Min. bursting pressure 1000 bar 14500 psi 100 MPa
- Medium temperature [°C] -40...90
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
