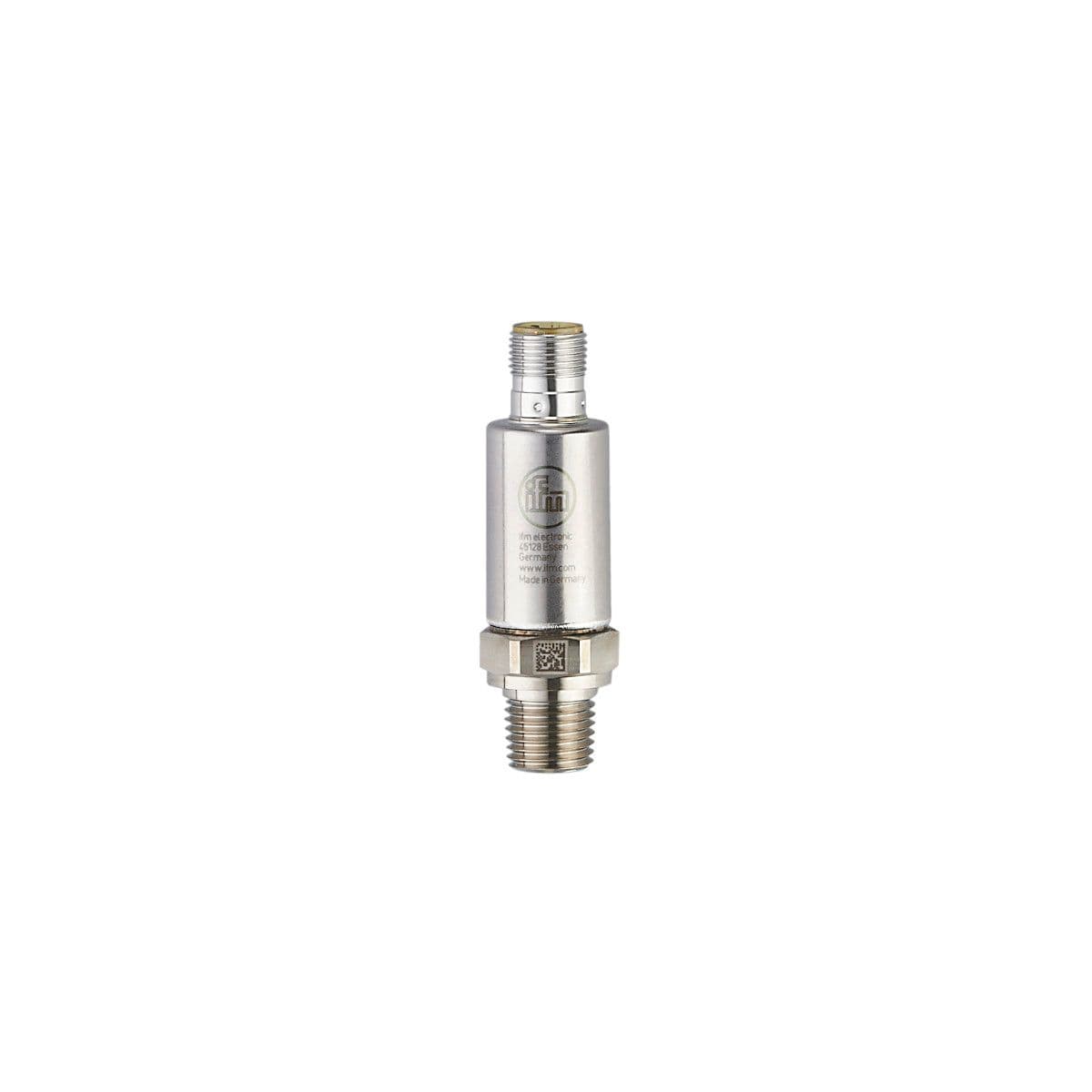

PV7623 ifm Electronic Electronic Components

Product Details

• Media
  liquids and gases
• Measuring range
  0...60 bar 0...870 psi 0...6 MPa
• Output signal
  switching signal; IO-Link; (configurable)
• Number of inputs and outputs
  Number of digital outputs: 2
• Switching frequency DC [Hz]
  < 170
• Note on pressure rating
  static
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of digital outputs
  2
• Application
  for industrial applications
• Output function
  normally open / closed; (configurable)
• Overload protection
  yes
• Type of pressure
  relative pressure
• Power-on delay time [s]
  < 0.3
• Type of short-circuit protection
  yes (non-latching)
• Protection class
  III
• Short-circuit protection
  yes
• Process connection
  threaded connection 1/4" NPT external thread Internal thread:M5
• Measuring element
  metallic thin film cell
• Pressure rating
  150 bar 2175 psi 15 Mpa
• MAWP (for applications according to CRN) [bar]
  150
Min. bursting pressure
900 bar 13050 psi 90 MPa
Operating voltage [V]
18...30 DC
Total number of outputs
2
Current consumption [mA]
< 15
Medium temperature [°C]
-40...90
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
100
Vacuum resistance [mbar]
-1000
Reverse polarity protection
yes
Electrical design
PNP/NPN
