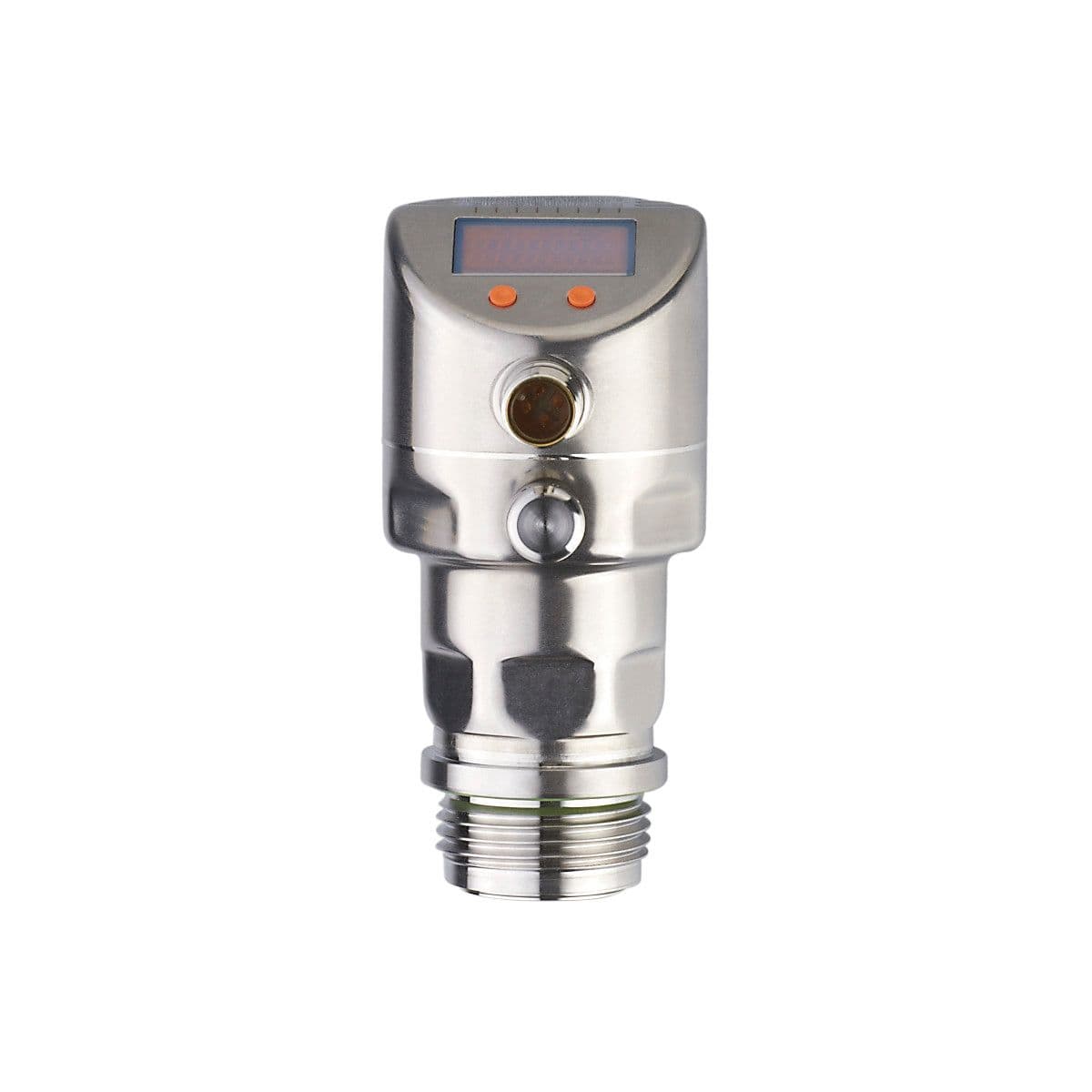

PI2796 ifm Electronic Electronic Components

Product Details

• Switching frequency DC [Hz]
  125
• Process connection
  threaded connection G 1 external thread Aseptoflex Vario
• Min. bursting pressure
  50 bar 725 psi 5000 kPa
• No dead space
  yes
• Operating voltage [V]
  18...32 DC
• Electrical design
  PNP/NPN
• Short-circuit protection
  yes
• Overload protection
  yes
• Protection class
  III
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Application
  flush mountable for the food and beverage industry
• System
  gold-plated contacts
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of digital outputs
  2
• Total number of outputs
  2
• Max. voltage drop switching output DC [V]
  2
• Measuring range
  -0.124...2.5 bar -124...2500 mbar -1.8...36.27 psi -12.4...250 kPa
• Vacuum resistance [mbar]
  -1000
• Current consumption [mA]
  < 45
• Analog current output [mA]
  4...20, invertible; (scalable)
Type of pressure
relative pressure
MAWP (for applications according to CRN) [bar]
20
Number of analog outputs
1
Media
viscous media and liquids with suspended particles; liquids and gases
Pressure rating
20 bar 290 psi 2000 kPa
Reverse polarity protection
yes
Medium temperature [°C]
-25...125; (145 max. 1h)
Integrated watchdog
yes
Permanent current rating of switching output DC [mA]
250
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Power-on delay time [s]
1
Output signal
switching signal; analog signal; IO-Link; (configurable)
Output function
normally open / closed; (configurable)
Type of short-circuit protection
yes (non-latching)
