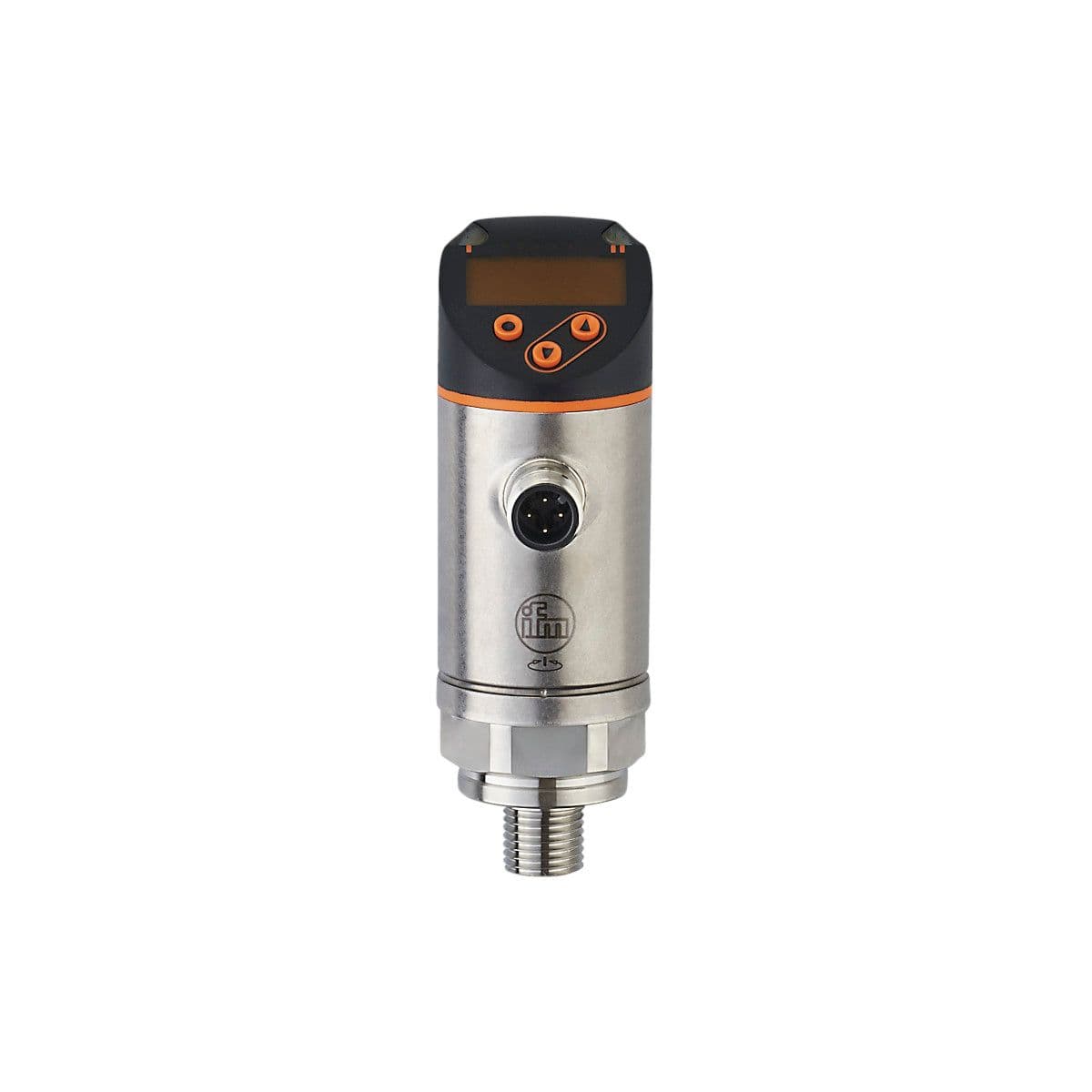

PN2670 ifm Electronic Electronic Components

Product Details

• Overload protection
  yes
• Measuring range
  0...400 bar 0...5800 psi 0...40 MPa
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Media
  liquids and gases
• Current consumption [mA]
  < 35
• Permanent current rating of switching output DC [mA]
  250
• Analog current output [mA]
  4...20; (scalable 1:5)
• Process connection
  threaded connection 1/4" NPT external thread
• Max. load [Ω]
  500
• Measuring element
  metallic thin film cell
• Pressure rating
  800 bar 11580 psi 80 Mpa
• Electrical design
  PNP/NPN
• Short-circuit protection
  yes
• Min. bursting pressure
  1700 bar 24650 psi 170 MPa
• Reverse polarity protection
  yes
• System
  gold-plated contacts
• Number of digital outputs
  2
• Medium temperature [°C]
  -25...80
• Min. insulation resistance [MΩ]
  100; (500 V DC)
Analog voltage output [V]
0...10; (scalable 1:5)
Integrated watchdog
yes
Vacuum resistance [mbar]
-1000
Total number of outputs
2
Application
for industrial applications
MAWP (for applications according to CRN)
800 bar 11580 psi 80 MPa
Output signal
switching signal; analog signal; IO-Link; (configurable)
Number of analog outputs
1
Protection class
III
Switching frequency DC [Hz]
< 500
Max. voltage drop switching output DC [V]
2
Type of short-circuit protection
yes (non-latching)
Type of pressure
relative pressure
Power-on delay time [s]
0.3
Min. load resistance [Ω]
2000
Output function
normally open / closed; (configurable)
