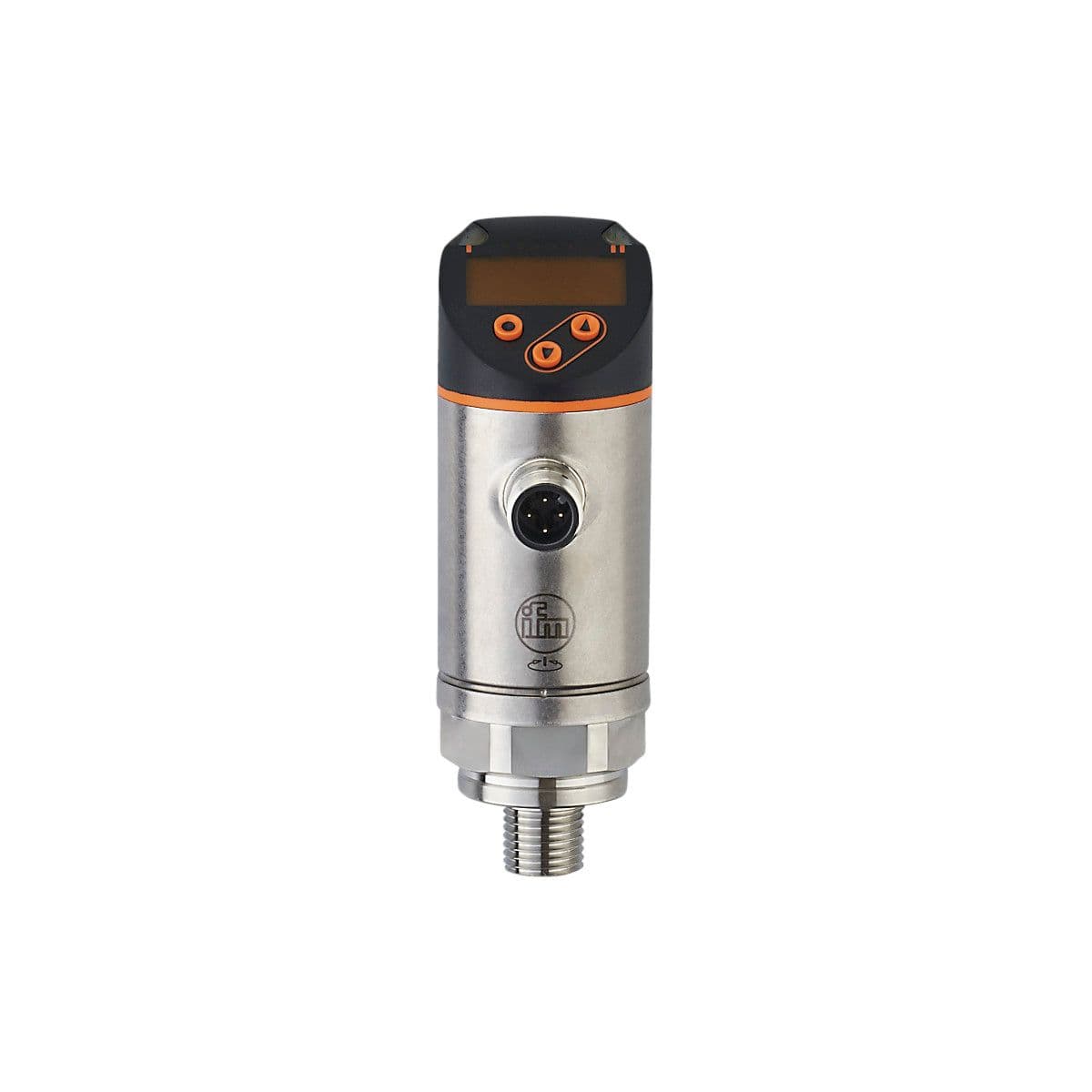

PN2671 ifm Electronic Electronic Components

Product Details

• Medium temperature [°C]
  -25...80
• Current consumption [mA]
  < 35
• Power-on delay time [s]
  0.3
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Switching frequency DC [Hz]
  < 500
• Analog current output [mA]
  4...20; (scalable 1:5)
• Total number of outputs
  2
• Min. load resistance [Ω]
  2000
• Pressure rating
  500 bar 7250 psi 50 Mpa
• Protection class
  III
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Measuring range
  0...250 bar 0...3625 psi 0...25 MPa
• Media
  liquids and gases
• Vacuum resistance [mbar]
  -1000
• Permanent current rating of switching output DC [mA]
  250
• Measuring element
  metallic thin film cell
• MAWP (for applications according to CRN)
  500 bar 7250 psi 50 MPa
• System
  gold-plated contacts
• Type of pressure
  relative pressure
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
Output function
normally open / closed; (configurable)
Type of short-circuit protection
yes (non-latching)
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Integrated watchdog
yes
Number of analog outputs
1
Process connection
threaded connection 1/4" NPT external thread
Min. bursting pressure
1200 bar 17400 psi 120 MPa
Application
for industrial applications
Reverse polarity protection
yes
Max. voltage drop switching output DC [V]
2
Overload protection
yes
Number of digital outputs
2
Electrical design
PNP/NPN
Short-circuit protection
yes
Max. load [Ω]
500
Min. insulation resistance [MΩ]
100; (500 V DC)
