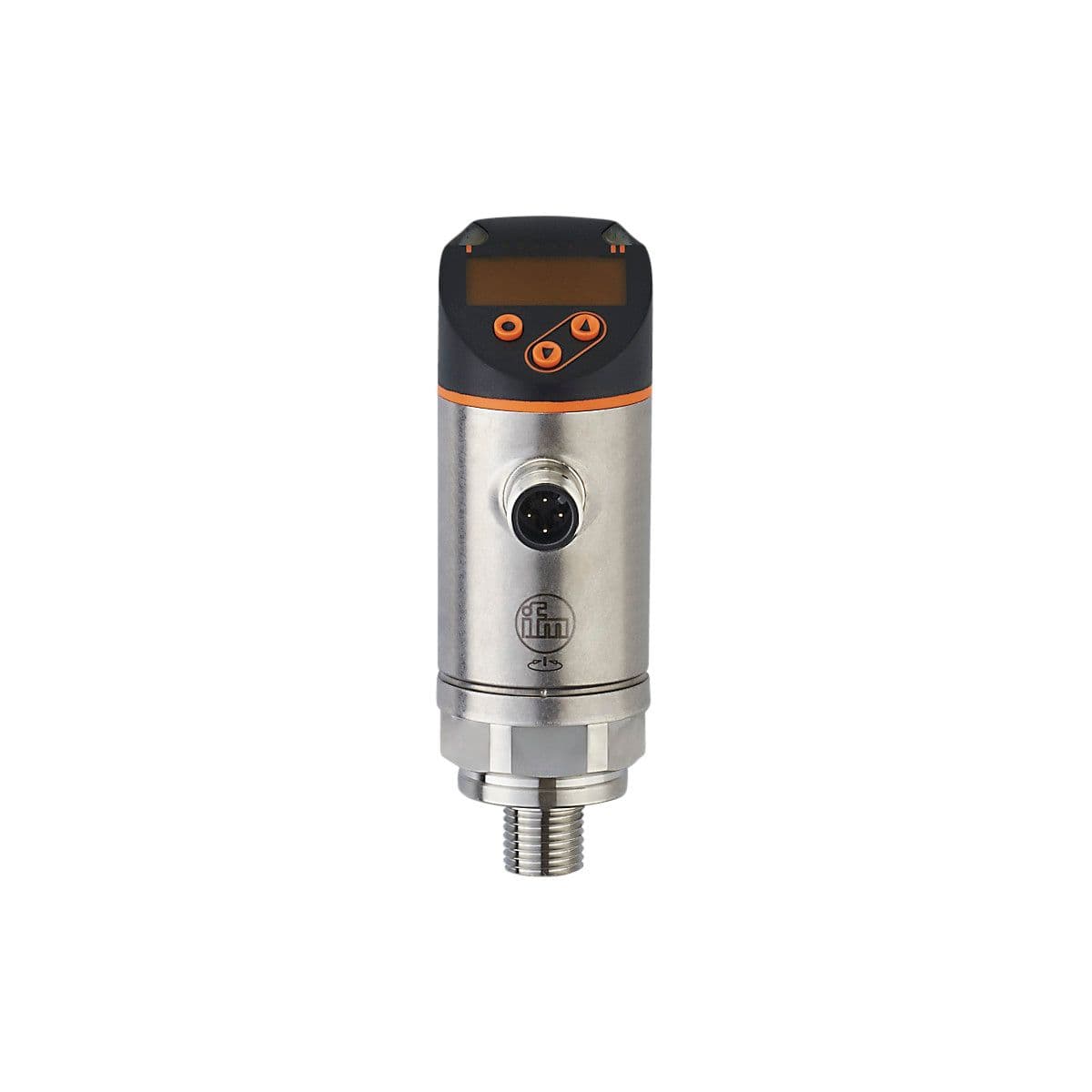

PN2692 ifm Electronic Electronic Components

Product Details

• Application
  for industrial applications
• Current consumption [mA]
  < 35
• Reverse polarity protection
  yes
• Number of analog outputs
  1
• Type of short-circuit protection
  yes (non-latching)
• Power-on delay time [s]
  0.3
• Max. load [Ω]
  500
• Process connection
  threaded connection 1/4" NPT external thread
• Min. bursting pressure
  650 bar 9400 psi 65 MPa
• Pressure rating
  300 bar 4350 psi 30 Mpa
• Integrated watchdog
  yes
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Analog current output [mA]
  4...20; (scalable 1:5)
• Short-circuit protection
  yes
• Output function
  normally open / closed; (configurable)
• Measuring element
  ceramic-capacitive pressure measuring cell
• MAWP (for applications according to CRN) [bar]
  125
• System
  gold-plated contacts
• Protection class
  III
• Max. voltage drop switching output DC [V]
  2
Measuring range
0...100 bar 0...1450 psi 0...10 MPa
Vacuum resistance [mbar]
-1000
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Permanent current rating of switching output DC [mA]
250
Overload protection
yes
Media
Liquids
Type of pressure
relative pressure
Total number of outputs
2
Switching frequency DC [Hz]
< 500
Medium temperature [°C]
-25...80
Conditionally suitable for
use in gases at pressures > 25 bar only on request
Min. insulation resistance [MΩ]
100; (500 V DC)
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Number of digital outputs
2
Electrical design
PNP/NPN
Min. load resistance [Ω]
2000
Analog voltage output [V]
0...10; (scalable 1:5)
