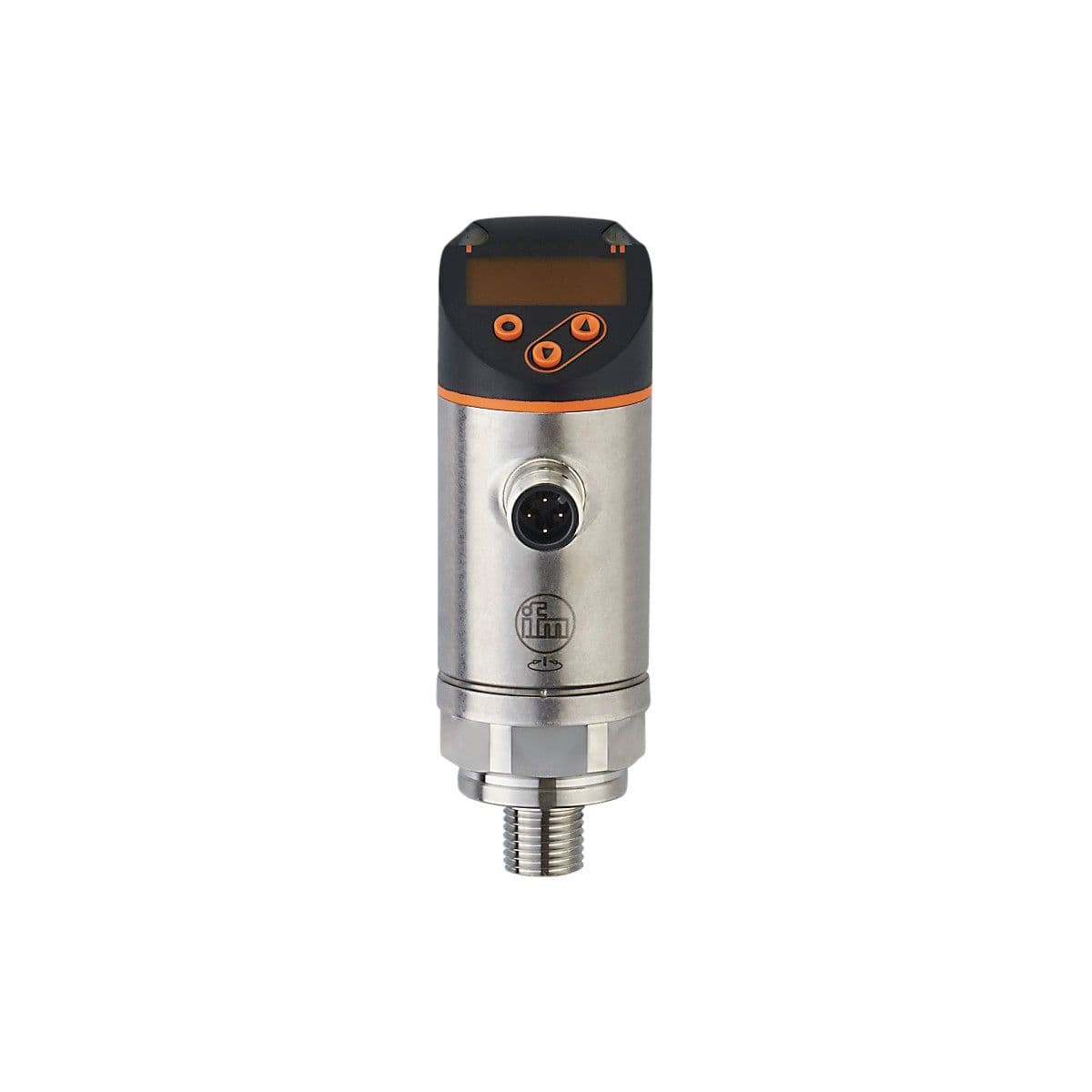

PN2694 ifm Electronic Electronic Components

Product Details

• Vacuum resistance [mbar]
  -1000
• Max. voltage drop switching output DC [V]
  2
• Permanent current rating of switching output DC [mA]
  250
• Reverse polarity protection
  yes
• Medium temperature [°C]
  -25...80
• Power-on delay time [s]
  0.3
• Number of analog outputs
  1
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Short-circuit protection
  yes
• Electrical design
  PNP/NPN
• Type of short-circuit protection
  yes (non-latching)
• Process connection
  threaded connection 1/4" NPT external thread
• Min. bursting pressure
  150 bar 2175 psi 15 MPa
• Current consumption [mA]
  < 35
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Measuring range
  -1...10 bar -14.6...145 psi -100...1000 kPa -0.1...1 MPa
• Media
  liquids and gases
• Measuring element
  ceramic-capacitive pressure measuring cell
• System
  gold-plated contacts
• Type of pressure
  relative pressure; vacuum
Min. insulation resistance [MΩ]
100; (500 V DC)
Integrated watchdog
yes
Output function
normally open / closed; (configurable)
Application
for industrial applications
MAWP (for applications according to CRN)
50 bar 725 psi 5 MPa
Pressure rating
75 bar 1087 psi 7.5 Mpa
Protection class
III
Max. load [Ω]
500
Min. load resistance [Ω]
2000
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Total number of outputs
2
Number of digital outputs
2
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Switching frequency DC [Hz]
< 500
Analog current output [mA]
4...20; (scalable 1:5)
Overload protection
yes
