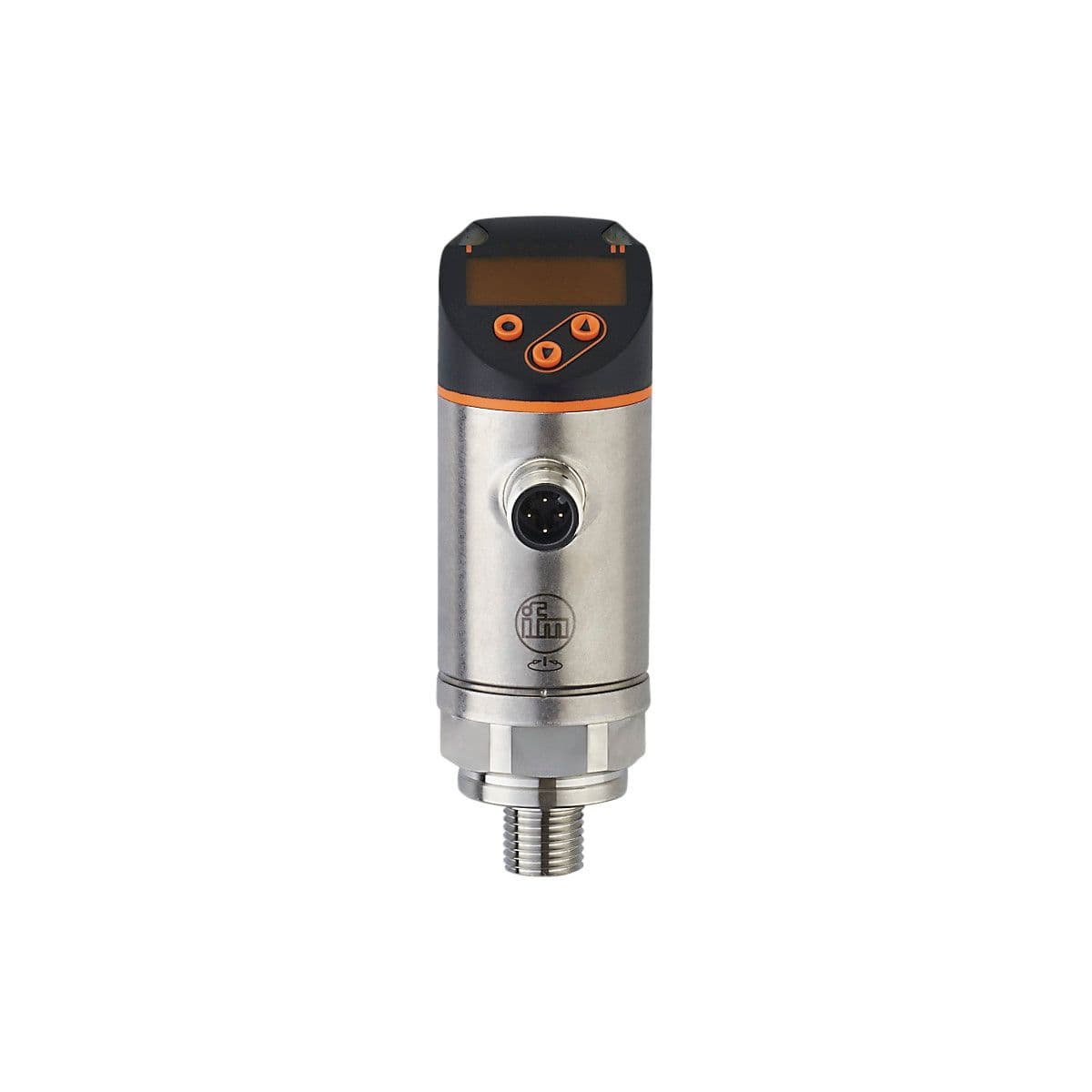

PN2693 ifm Electronic Electronic Components

Product Details

• System
  gold-plated contacts
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Short-circuit protection
  yes
• Min. bursting pressure
  350 bar 5075 psi 35 MPa
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Media
  liquids and gases
• MAWP (for applications according to CRN)
  70 bar 1015 psi 7 MPa
• Power-on delay time [s]
  0.3
• Measuring range
  -1...25 bar -14.5...362.5 psi -0.1...2.5 MPa
• Reverse polarity protection
  yes
• Overload protection
  yes
• Application
  for industrial applications
• Type of pressure
  relative pressure; vacuum
• Number of digital outputs
  2
• Min. load resistance [Ω]
  2000
• Output function
  normally open / closed; (configurable)
• Type of short-circuit protection
  yes (non-latching)
Medium temperature [°C]
-25...80
Number of analog outputs
1
Total number of outputs
2
Max. load [Ω]
500
Protection class
III
Permanent current rating of switching output DC [mA]
250
Integrated watchdog
yes
Measuring element
ceramic-capacitive pressure measuring cell
Electrical design
PNP/NPN
Current consumption [mA]
< 35
Max. voltage drop switching output DC [V]
2
Process connection
threaded connection 1/4" NPT external thread
Pressure rating
150 bar 2175 psi 15 Mpa
Analog current output [mA]
4...20; (scalable 1:5)
Vacuum resistance [mbar]
-1000
Switching frequency DC [Hz]
< 500

PN2693 Related Documents
