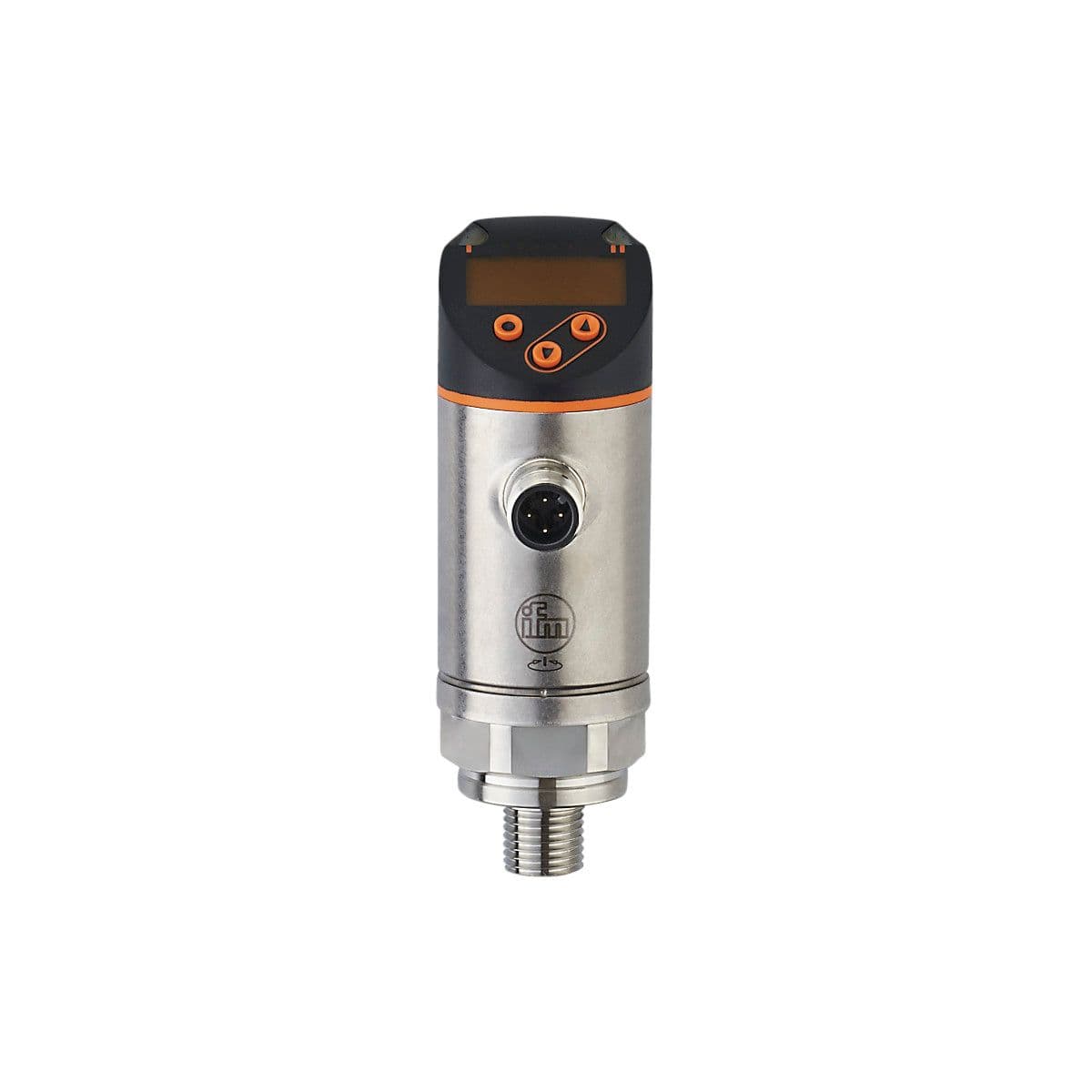

PN2698 ifm Electronic Electronic Components

Product Details

• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Medium temperature [°C]
  -25...80
• Output function
  normally open / closed; (configurable)
• Overload protection
  yes
• Application
  for industrial applications
• Current consumption [mA]
  < 35
• Number of digital outputs
  2
• Type of short-circuit protection
  yes (non-latching)
• Measuring element
  ceramic-capacitive pressure measuring cell
• Protection class
  III
• Switching frequency DC [Hz]
  < 500
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Total number of outputs
  2
• Max. load [Ω]
  500
• Measuring range
  -0.0125...0.25 bar -12.5...250 mbar -5...100.4 inH2O -1.25...25 kPa -127...2549 mmWS
• Pressure rating
  10000 mbar 4000 inH2O 1000 kPa 102000 mmWS
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Min. load resistance [Ω]
  2000
• Electrical design
  PNP/NPN
• Permanent current rating of switching output DC [mA]
  250
MAWP (for applications according to CRN)
10 bar 10000 mbar 4000 inH2O 1000 kPa
Process connection
threaded connection 1/4" NPT external thread
Type of pressure
relative pressure
Output signal
switching signal; analog signal; IO-Link; (configurable)
Analog voltage output [V]
0...10; (scalable 1:5)
System
gold-plated contacts
Reverse polarity protection
yes
Max. voltage drop switching output DC [V]
2
Short-circuit protection
yes
Min. bursting pressure
30000 mbar 12000 inH2O 3000 kPa 306000 mmWS
Vacuum resistance [mbar]
-1000
Integrated watchdog
yes
Number of analog outputs
1
Media
liquids and gases
Power-on delay time [s]
0.3
Analog current output [mA]
4...20; (scalable 1:5)
