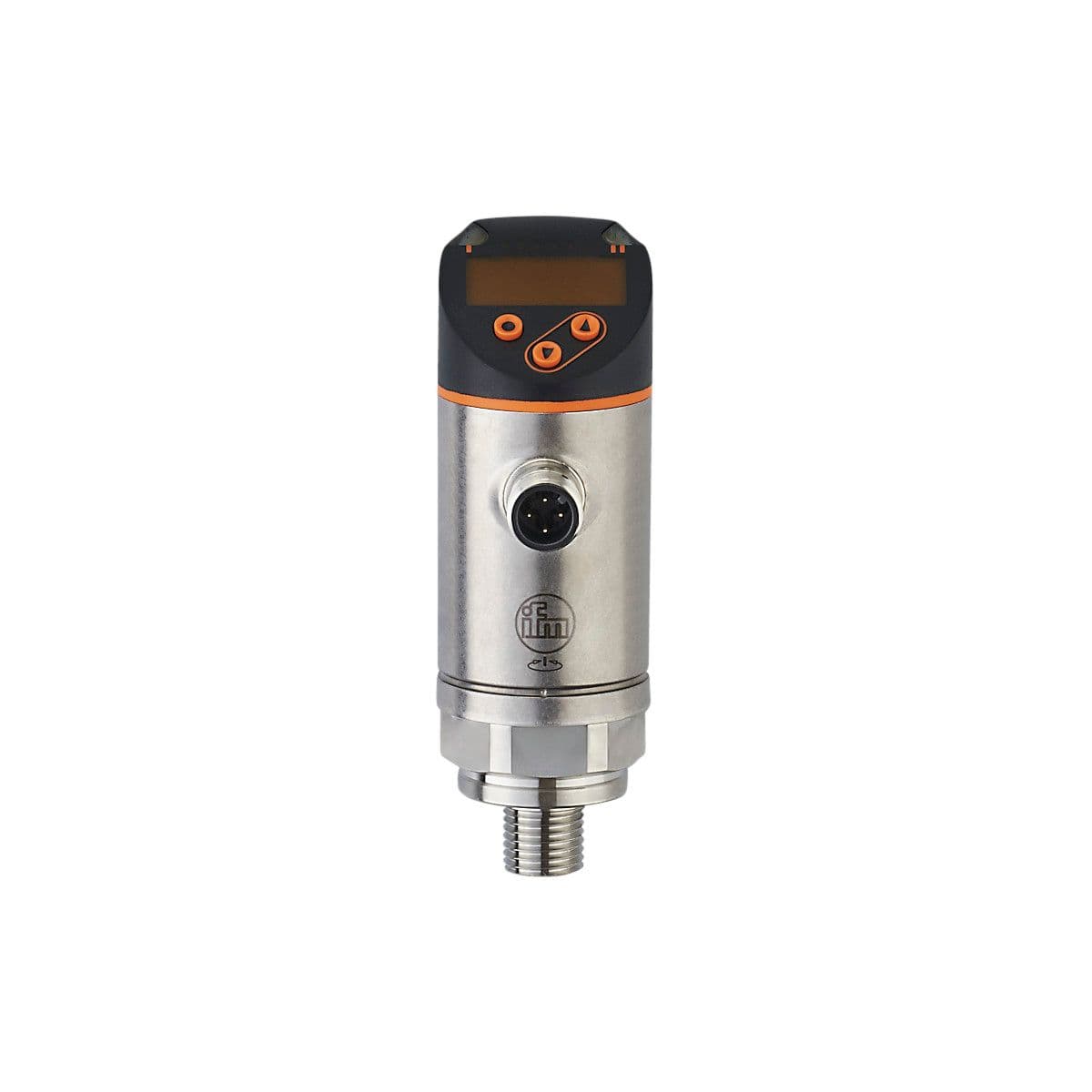

PN2697 ifm Electronic Electronic Components

Product Details

• Current consumption [mA]
  < 35
• Number of digital outputs
  2
• Short-circuit protection
  yes
• Measuring range
  -0.05...1 bar -50...1000 mbar -0.72...14.5 psi -20.1...401.5 inH2O -5...100 kPa
• Min. bursting pressure
  30000 mbar 450 psi 3000 kPa
• Vacuum resistance [mbar]
  -1000
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Output function
  normally open / closed; (configurable)
• Overload protection
  yes
• Medium temperature [°C]
  -25...80
• Type of pressure
  relative pressure
• Power-on delay time [s]
  0.3
• Max. load [Ω]
  500
• Application
  for industrial applications
• Pressure rating
  10000 mbar 145 psi 1000 kPa
• Number of analog outputs
  1
• Reverse polarity protection
  yes
• Electrical design
  PNP/NPN
Max. voltage drop switching output DC [V]
2
Min. load resistance [Ω]
2000
Analog voltage output [V]
0...10; (scalable 1:5)
Media
liquids and gases
System
gold-plated contacts
Process connection
threaded connection 1/4" NPT external thread
Min. insulation resistance [MΩ]
100; (500 V DC)
MAWP (for applications according to CRN)
10 bar 10000 mbar 145 psi 1000 kPa
Protection class
III
Measuring element
ceramic-capacitive pressure measuring cell
Total number of outputs
2
Analog current output [mA]
4...20; (scalable 1:5)
Integrated watchdog
yes
Switching frequency DC [Hz]
< 500
Permanent current rating of switching output DC [mA]
250
Type of short-circuit protection
yes (non-latching)
