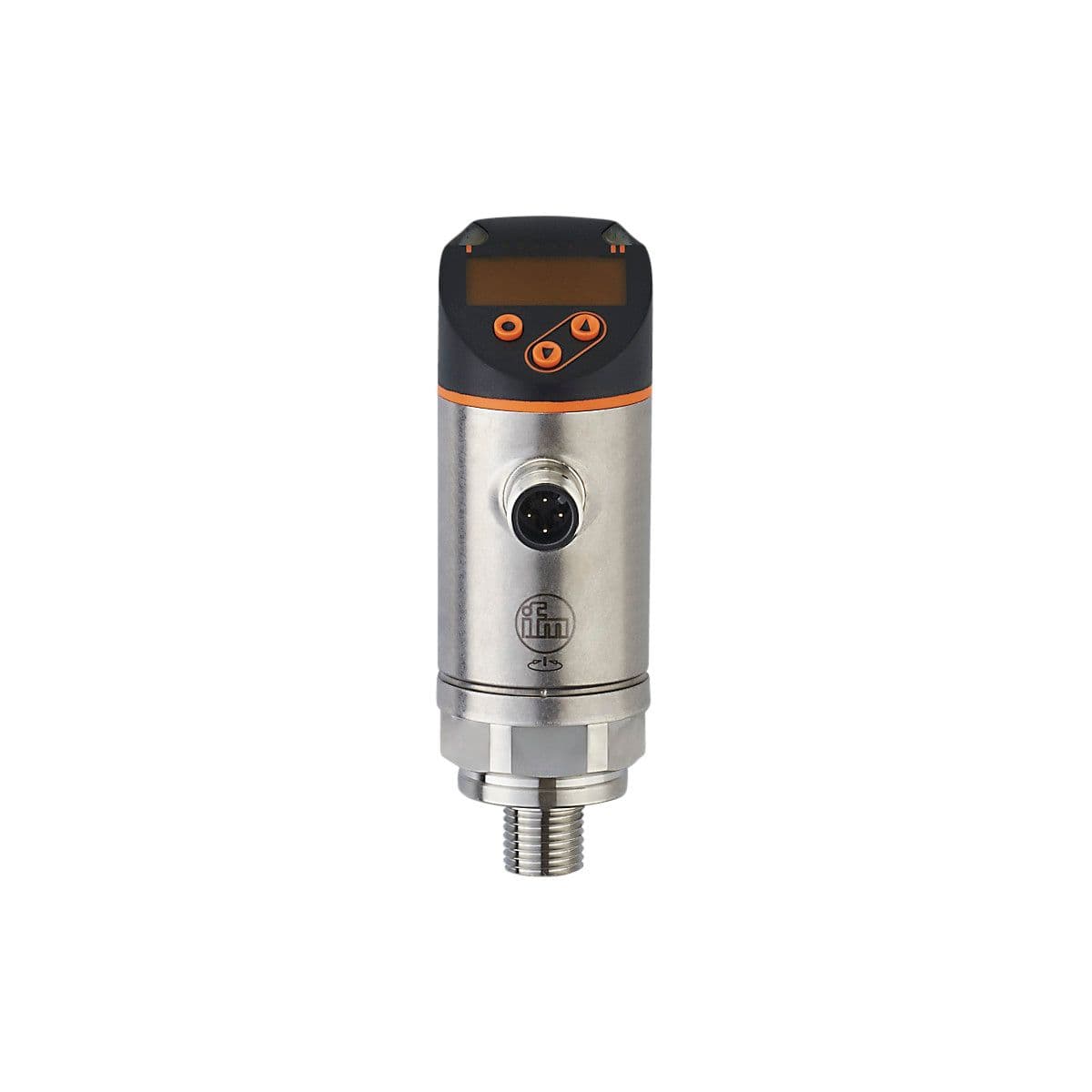

PN2696 ifm Electronic Electronic Components

Product Details

• Number of digital outputs
  2
• Analog voltage output [V]
  0...10; (scalable 1:5)
• System
  gold-plated contacts
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Application
  for industrial applications
• Reverse polarity protection
  yes
• Max. voltage drop switching output DC [V]
  2
• Type of short-circuit protection
  yes (non-latching)
• Min. bursting pressure
  50 bar 725 psi 5000 kPa
• Type of pressure
  relative pressure
• Output function
  normally open / closed; (configurable)
• Short-circuit protection
  yes
• MAWP (for applications according to CRN)
  20 bar 290 psi 2000 kPa
• Integrated watchdog
  yes
• Number of analog outputs
  1
• Media
  liquids and gases
• Measuring element
  ceramic-capacitive pressure measuring cell
• Current consumption [mA]
  < 35
• Permanent current rating of switching output DC [mA]
  250
• Process connection
  threaded connection 1/4" NPT external thread
Pressure rating
20 bar 290 psi 2000 kPa
Max. load [Ω]
500
Measuring range
-0.125...2.5 bar -125...2500 mbar -1.8...36.25 psi -12.5...250 kPa
Min. insulation resistance [MΩ]
100; (500 V DC)
Total number of outputs
2
Output signal
switching signal; analog signal; IO-Link; (configurable)
Analog current output [mA]
4...20; (scalable 1:5)
Switching frequency DC [Hz]
< 500
Overload protection
yes
Protection class
III
Medium temperature [°C]
-25...80
Min. load resistance [Ω]
2000
Vacuum resistance [mbar]
-1000
Electrical design
PNP/NPN
Power-on delay time [s]
0.3
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
