PN7696 ifm Electronic Electronic Components
Part#:PN7696
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

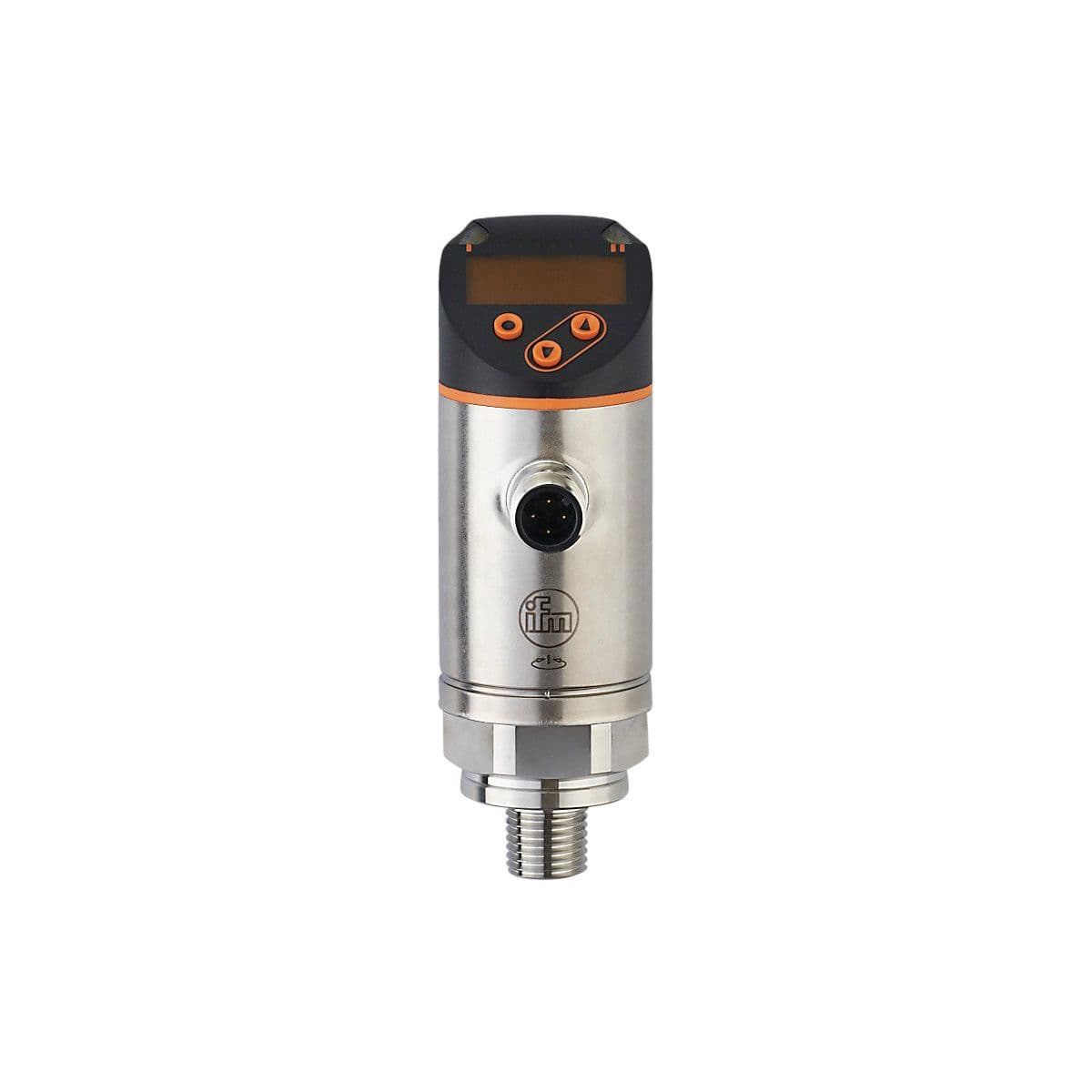

Pressure sensor with display, Two switching outputs, one of them with IO-Link communication interface, Output signal: switching signal; IO-Link; (configurable), Measuring range: 0...2.5 bar 0...2500 mbar 0...36.2 psi 0...250 kPa, Process connection: threa
Product Details
- Max. voltage drop switching output DC [V] 2.5
- Protection class III
- Permanent current rating of switching output DC [mA] 150; (200 (...60 °C) 250 (...40 °C))
- Application for industrial applications
- MAWP (for applications according to CRN) 20 bar 290 psi 2000 kPa
- Output signal switching signal; IO-Link; (configurable)
- Type of short-circuit protection yes (non-latching)
- Type of pressure relative pressure
- Number of inputs and outputs Number of digital outputs: 2
- Min. bursting pressure 50 bar 725 psi 5000 kPa
- Pressure rating 20 bar 290 psi 2000 kPa
- Total number of outputs 2
- Medium temperature [°C] -25...80
- Current consumption [mA] < 35
- Integrated watchdog yes
- Short-circuit protection yes
- Process connection threaded connection 1/4" NPT external thread
- Operating voltage [V] 18...30 DC; (according to EN 50178 SELV/PELV)
- Electrical design PNP/NPN
- Overload protection yes
- System gold-plated contacts
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Output function normally open / closed; (configurable)
- Reverse polarity protection yes
- Number of digital outputs 2
- Measuring range 0...2.5 bar 0...2500 mbar 0...36.2 psi 0...250 kPa
- Media liquids and gases
- Power-on delay time [s] < 0.3
- Switching frequency DC [Hz] < 170
- Measuring element ceramic-capacitive pressure measuring cell
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
