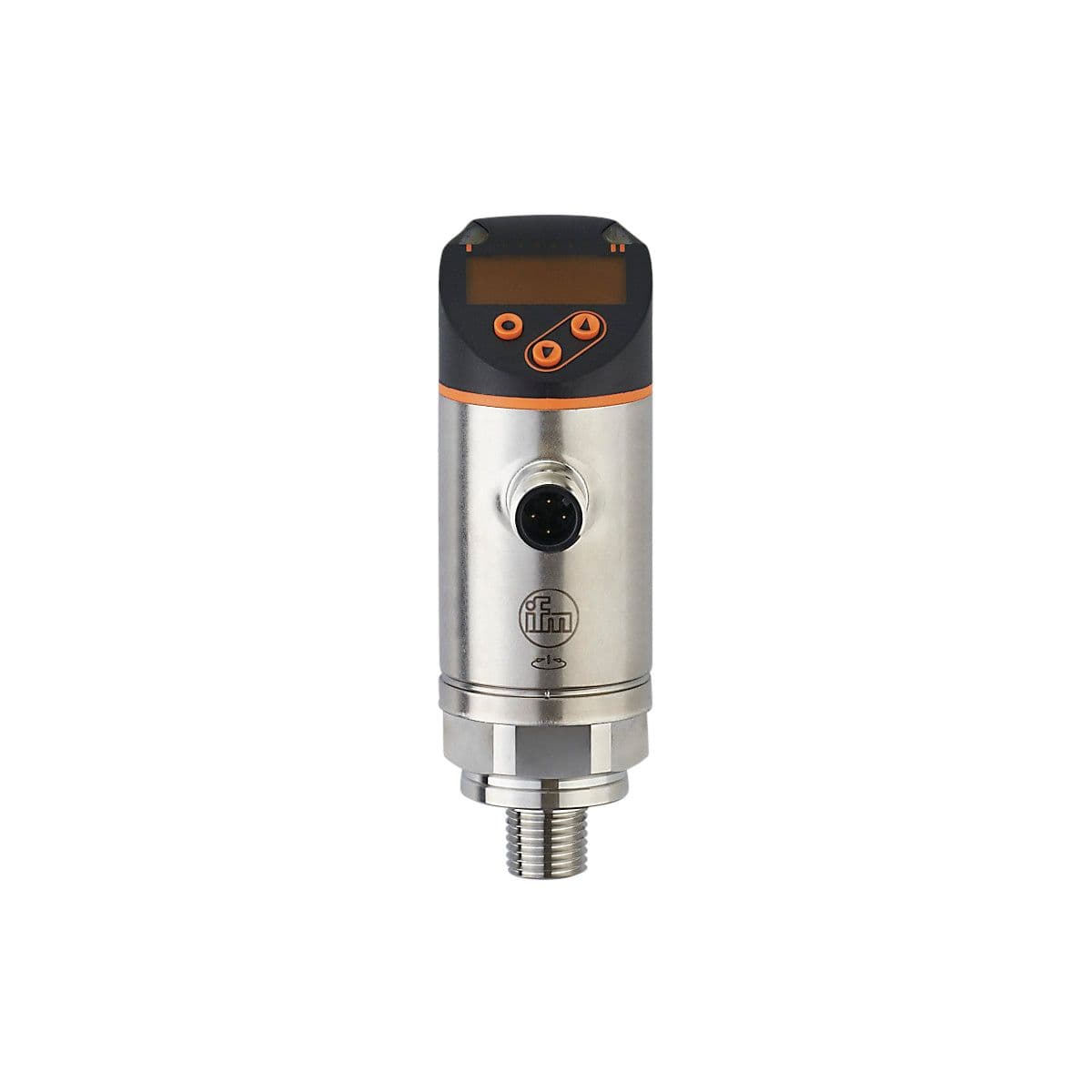

PN7692 ifm Electronic Electronic Components

Product Details

• Type of short-circuit protection
  yes (non-latching)
• Type of pressure
  relative pressure
• Output signal
  switching signal; IO-Link; (configurable)
• Electrical design
  PNP/NPN
• System
  gold-plated contacts
• MAWP (for applications according to CRN) [bar]
  125
• Total number of outputs
  2
• Overload protection
  yes
• Application
  for industrial applications
• Current consumption [mA]
  < 35
• Output function
  normally open / closed; (configurable)
• Media
  Liquids
• Power-on delay time [s]
  0.3
• Max. voltage drop switching output DC [V]
  2.5
• Measuring range
  0...100 bar 0...1450 psi 0...10 MPa
• Min. bursting pressure
  650 bar 9400 psi 65 MPa
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Permanent current rating of switching output DC [mA]
  150; (200 (...60 °C) 250 (...40 °C))
• Measuring element
  ceramic-capacitive pressure measuring cell
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
Reverse polarity protection
yes
Process connection
threaded connection 1/4" NPT external thread
Pressure rating
300 bar 4350 psi 30 Mpa
Number of inputs and outputs
Number of digital outputs: 2
Switching frequency DC [Hz]
< 170
Medium temperature [°C]
-25...80
Protection class
III
Number of digital outputs
2
Conditionally suitable for
use in gases at pressures > 25 bar only on request
Integrated watchdog
yes
Short-circuit protection
yes
