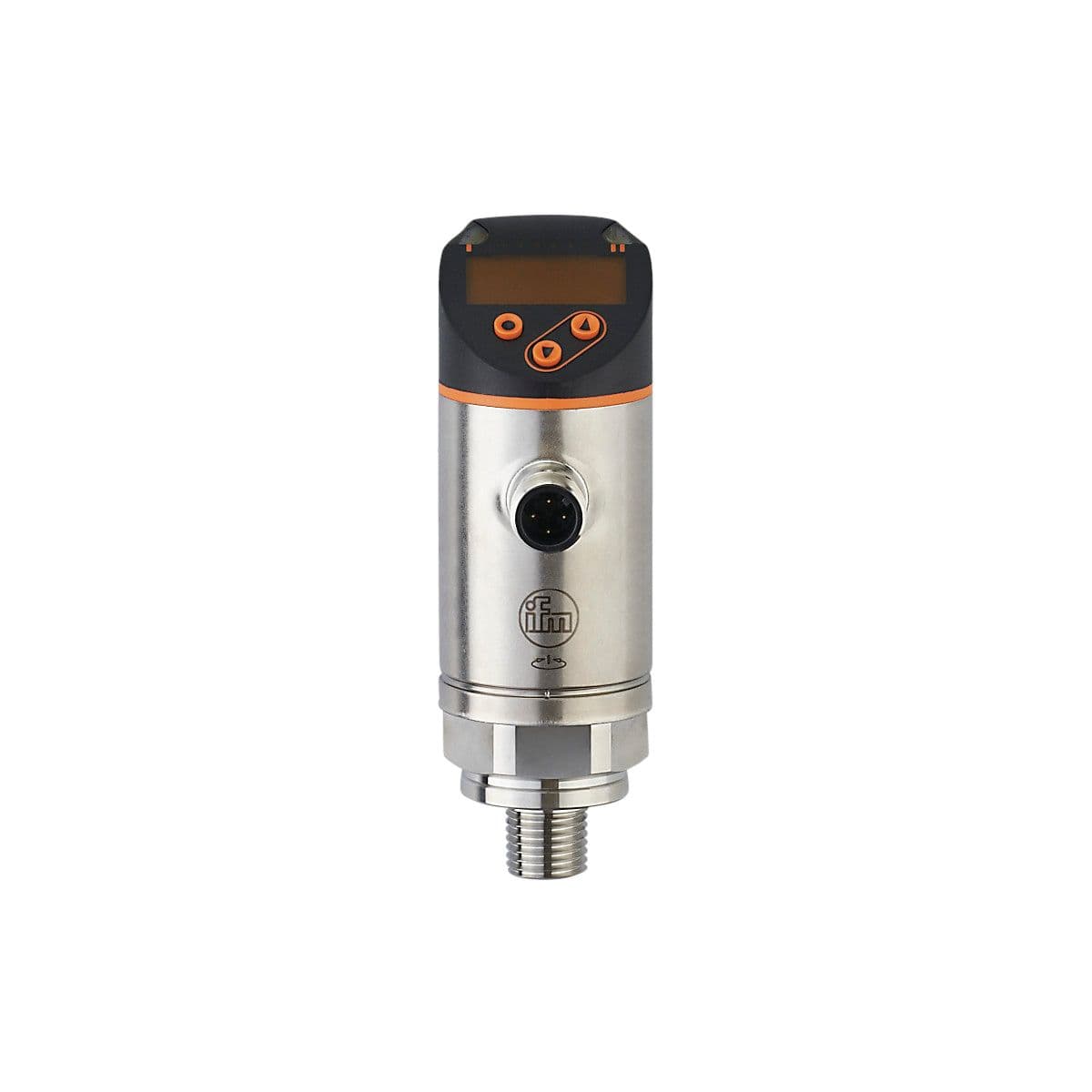

PN7699 ifm Electronic Electronic Components

Product Details

• System
  gold-plated contacts
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Max. voltage drop switching output DC [V]
  2.5
• Medium temperature [°C]
  -25...80
• Current consumption [mA]
  < 35
• Power-on delay time [s]
  < 0.3
• Switching frequency DC [Hz]
  < 170
• Output signal
  switching signal; IO-Link; (configurable)
• Number of digital outputs
  2
• Pressure rating
  10000 mbar 145 psi 290 inHg 1000 kPa
• Media
  liquids and gases
• Integrated watchdog
  yes
• Type of short-circuit protection
  yes (non-latching)
• Short-circuit protection
  yes
• Measuring element
  ceramic-capacitive pressure measuring cell
• MAWP (for applications according to CRN)
  20 bar 20000 mbar 290 psi 590 inHg 2000 kPa
• Number of inputs and outputs
  Number of digital outputs: 2
• Type of pressure
  relative pressure; vacuum
• Reverse polarity protection
  yes
• Output function
  normally open / closed; (configurable)
Measuring range
-1...1 bar -1000...1000 mbar -14.5...14.5 psi -29.4...29.4 inHg -100...100 kPa
Application
for industrial applications
Min. bursting pressure
30000 mbar 450 psi 880 inHg 3000 kPa
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Total number of outputs
2
Electrical design
PNP/NPN
Overload protection
yes
Permanent current rating of switching output DC [mA]
150; (200 (...60 °C) 250 (...40 °C))
Protection class
III
Process connection
threaded connection 1/4" NPT external thread
