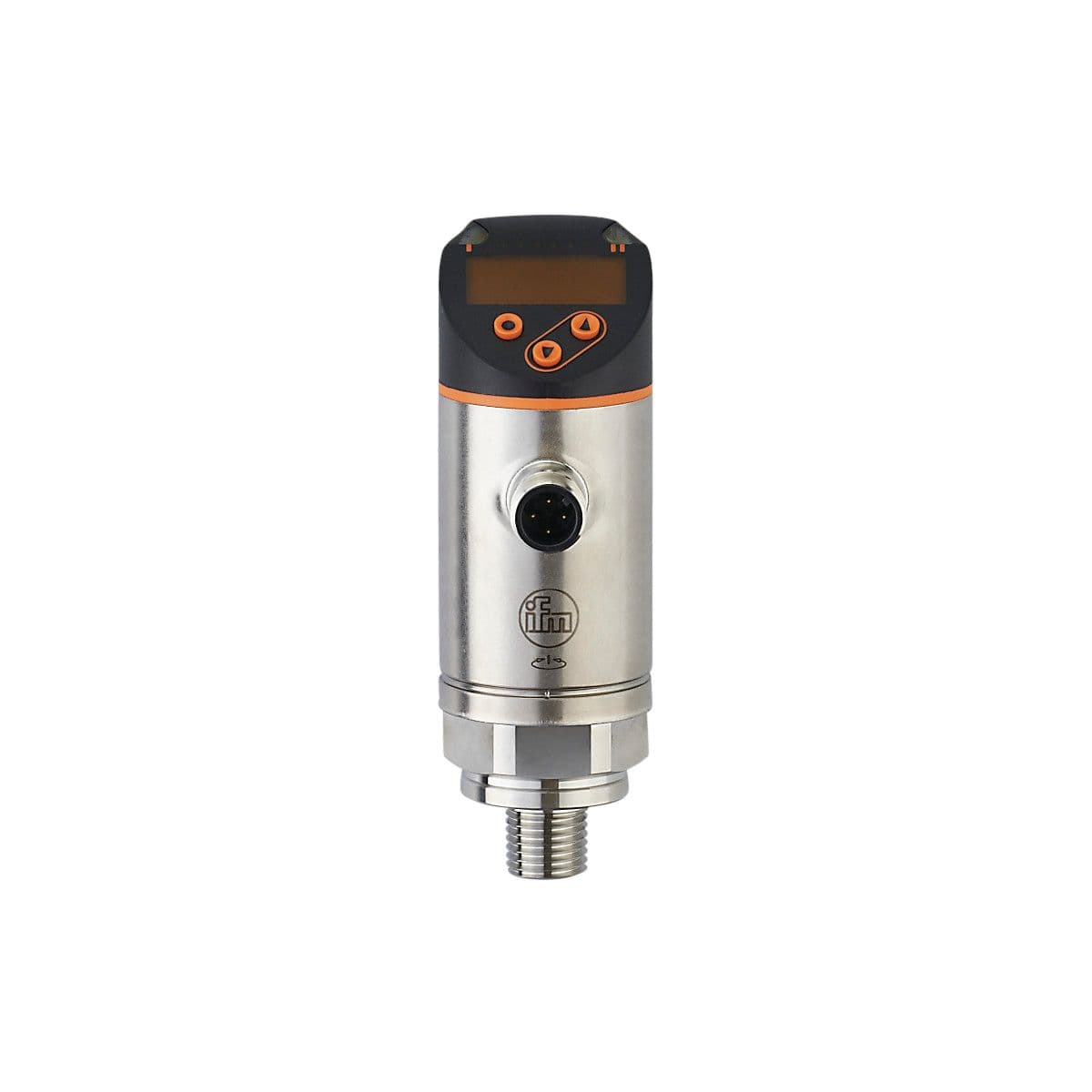

PN7671 ifm Electronic Electronic Components

Product Details

• Media
  liquids and gases
• Type of pressure
  relative pressure
• Reverse polarity protection
  yes
• Total number of outputs
  2
• Number of digital outputs
  2
• Overload protection
  yes
• Measuring element
  metallic thin film cell
• Min. bursting pressure
  1100 bar 15950 psi 110 MPa
• MAWP (for applications according to CRN)
  500 bar 7250 psi 50 MPa
• Medium temperature [°C]
  -25...80
• Measuring range
  0...250 bar 0...3620 psi 0...25 MPa
• Current consumption [mA]
  < 35
• Output signal
  switching signal; IO-Link; (configurable)
• Type of short-circuit protection
  yes (non-latching)
• Integrated watchdog
  yes
• Short-circuit protection
  yes
• Process connection
  threaded connection 1/4" NPT external thread
• System
  gold-plated contacts
• Application
  for industrial applications
• Min. insulation resistance [MΩ]
  100; (500 V DC)
Max. voltage drop switching output DC [V]
2.5
Number of inputs and outputs
Number of digital outputs: 2
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Permanent current rating of switching output DC [mA]
150; (200 (...60 °C) 250 (...40 °C))
Pressure rating
500 bar 7250 psi 50 Mpa
Electrical design
PNP/NPN
Switching frequency DC [Hz]
< 170
Power-on delay time [s]
0.3
Protection class
III
Output function
normally open / closed; (configurable)
