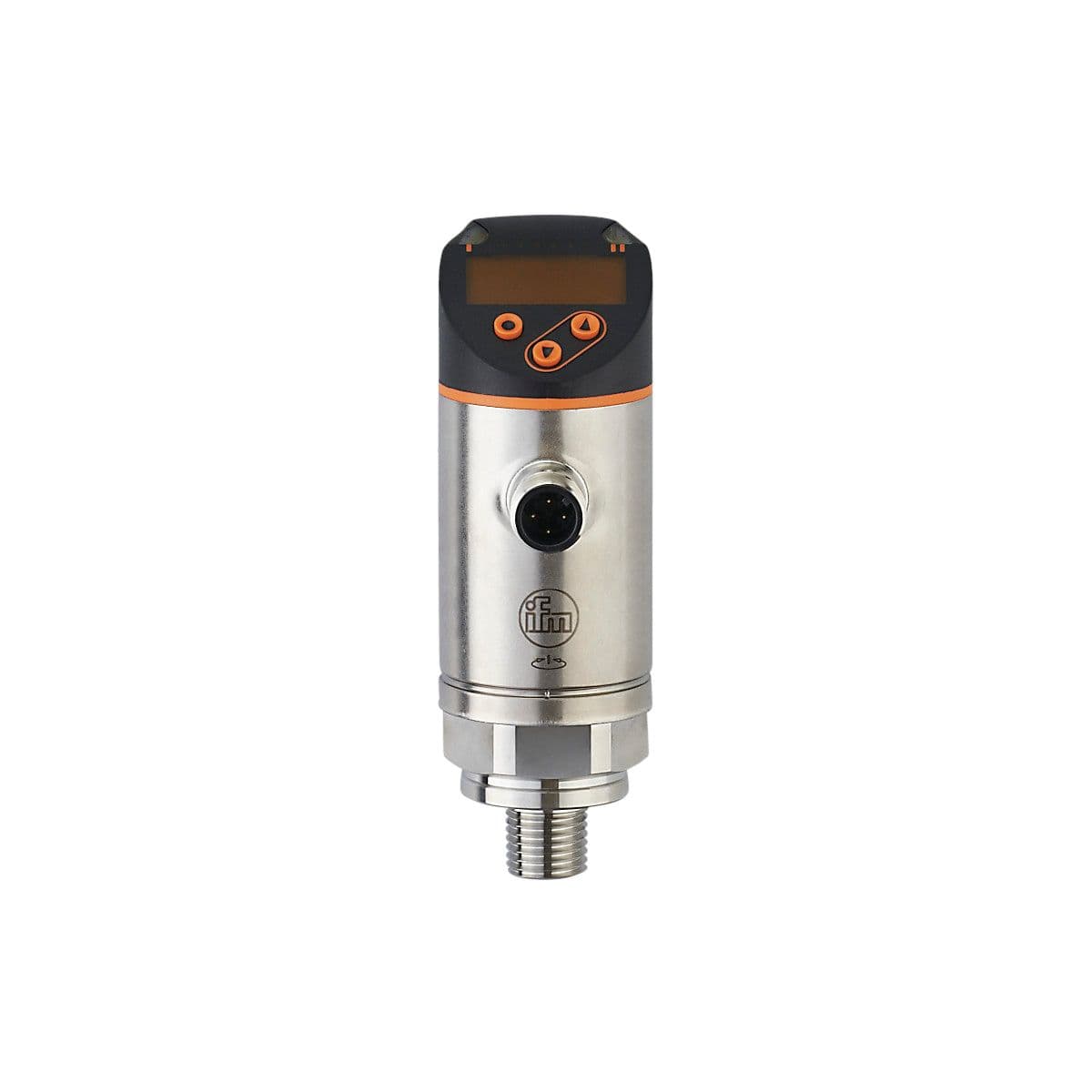

PN7693 ifm Electronic Electronic Components

Product Details

• Min. bursting pressure
  350 bar 5075 psi 35 MPa
• Electrical design
  PNP/NPN
• Type of pressure
  relative pressure
• Number of inputs and outputs
  Number of digital outputs: 2
• Output signal
  switching signal; IO-Link; (configurable)
• Media
  liquids and gases
• Protection class
  III
• Max. voltage drop switching output DC [V]
  2.5
• Application
  for industrial applications
• Current consumption [mA]
  < 35
• Type of short-circuit protection
  yes (non-latching)
• Measuring range
  0...25 bar 0...362 psi 0...2.5 MPa
• MAWP (for applications according to CRN)
  70 bar 1015 psi 12.5 MPa
• Total number of outputs
  2
• Overload protection
  yes
• Medium temperature [°C]
  -25...80
• Reverse polarity protection
  yes
• Number of digital outputs
  2
• Short-circuit protection
  yes
• Measuring element
  ceramic-capacitive pressure measuring cell
Min. insulation resistance [MΩ]
100; (500 V DC)
Integrated watchdog
yes
Switching frequency DC [Hz]
< 170
Pressure rating
150 bar 2175 psi 15 Mpa
Process connection
threaded connection 1/4" NPT external thread
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Permanent current rating of switching output DC [mA]
150; (200 (...60 °C) 250 (...40 °C))
System
gold-plated contacts
Power-on delay time [s]
< 0.3
Output function
normally open / closed; (configurable)
