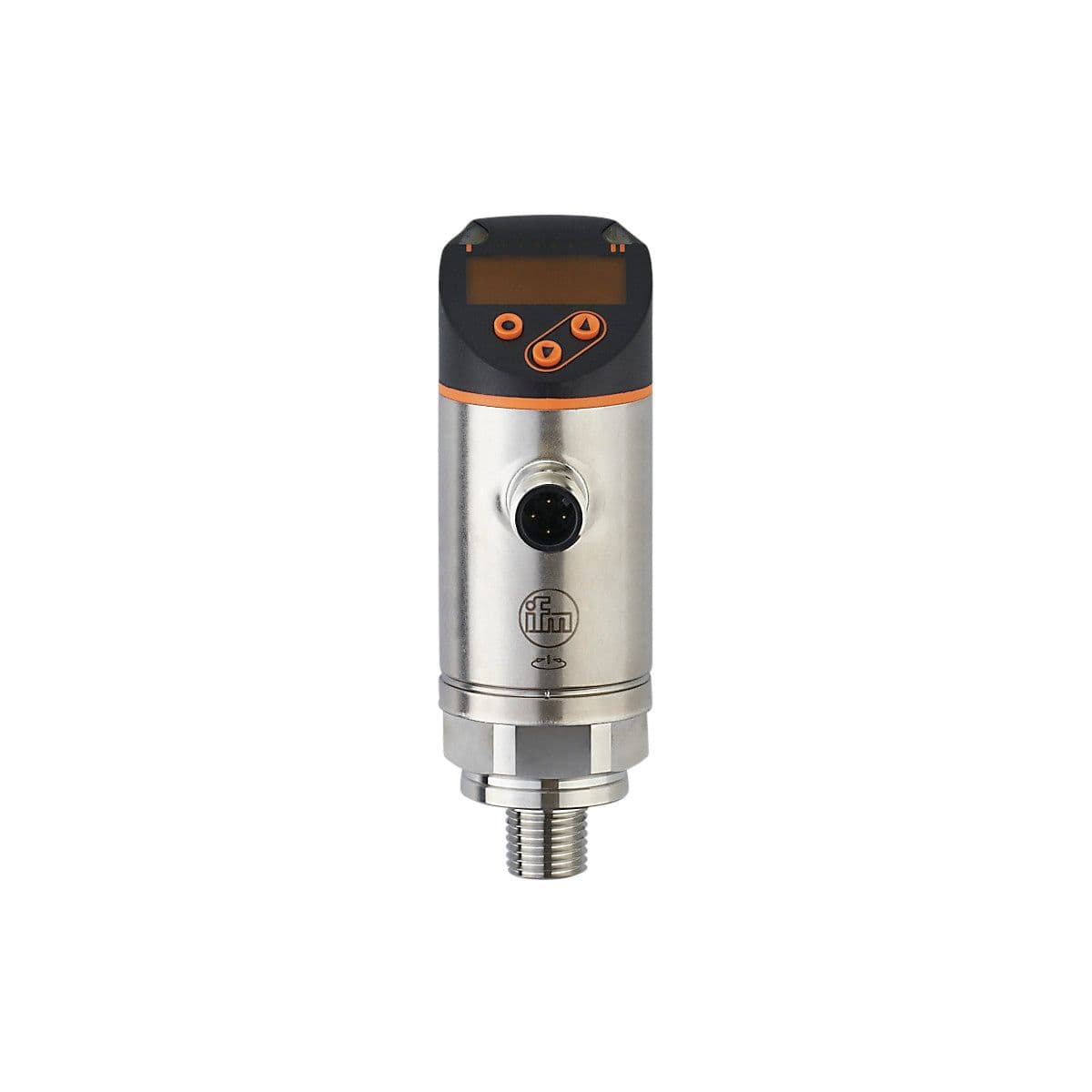

PN7697 ifm Electronic Electronic Components

Product Details

• Media
  liquids and gases
• Process connection
  threaded connection 1/4" NPT external thread
• Reverse polarity protection
  yes
• Switching frequency DC [Hz]
  < 170
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• MAWP (for applications according to CRN)
  10 bar 10000 mbar 145 psi 290 inHg 1000 kPa
• Number of inputs and outputs
  Number of digital outputs: 2
• Type of short-circuit protection
  yes (non-latching)
• Measuring range
  0...1 bar 0...1000 mbar 0...14.5 psi 0...29.5 inHg 0...100 kPa
• Pressure rating
  10000 mbar 145 psi 290 inHg 1000 kPa
• Min. bursting pressure
  30000 mbar 450 psi 880 inHg 3000 kPa
• Power-on delay time [s]
  < 0.3
• Output function
  normally open / closed; (configurable)
• Number of digital outputs
  2
• Short-circuit protection
  yes
• Application
  for industrial applications
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Type of pressure
  relative pressure
• Output signal
  switching signal; IO-Link; (configurable)
• Medium temperature [°C]
  -25...80
Current consumption [mA]
< 35
System
gold-plated contacts
Total number of outputs
2
Overload protection
yes
Max. voltage drop switching output DC [V]
2.5
Electrical design
PNP/NPN
Measuring element
ceramic-capacitive pressure measuring cell
Integrated watchdog
yes
Protection class
III
Permanent current rating of switching output DC [mA]
150; (200 (...60 °C) 250 (...40 °C))

PN7697 Related Documents
