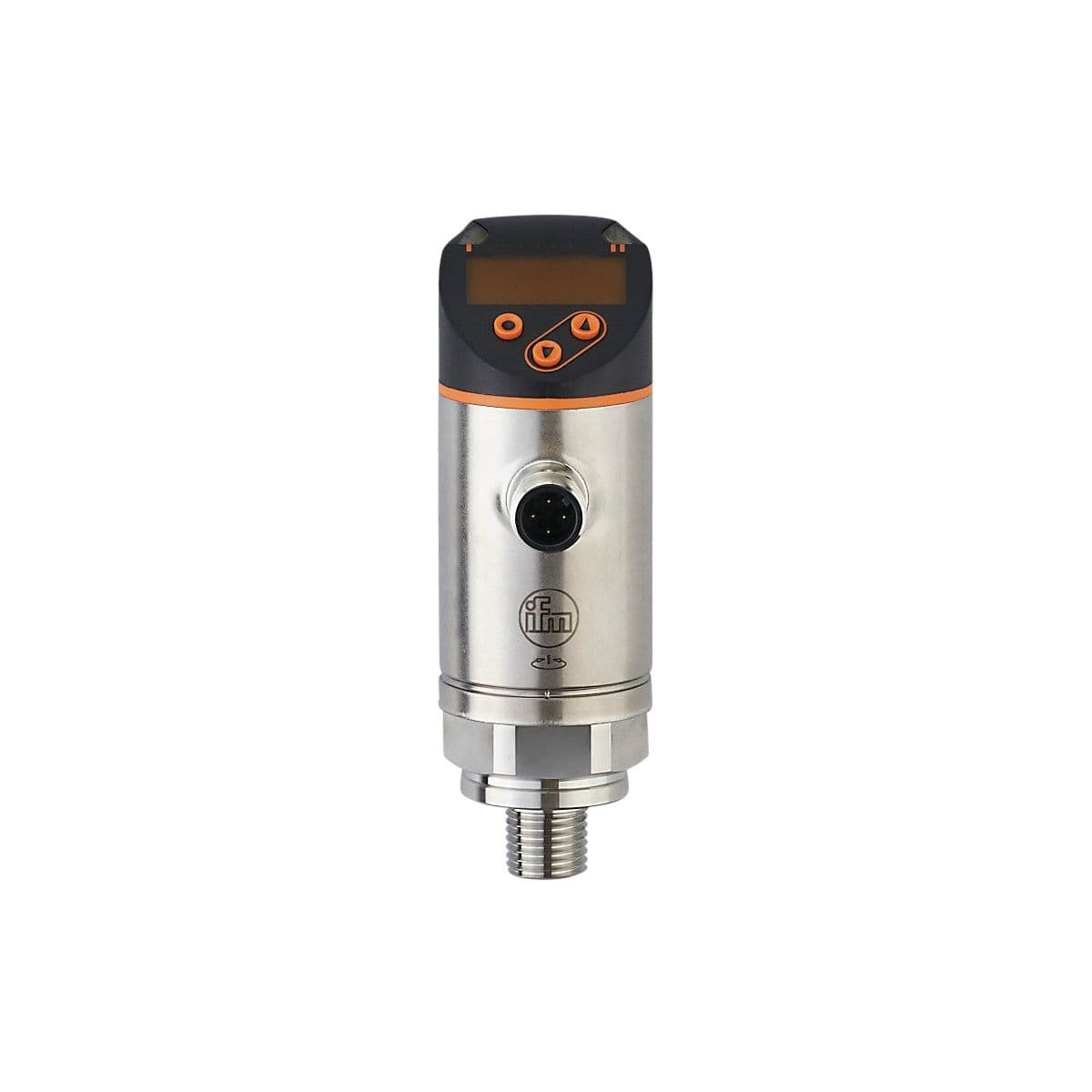

PN7670 ifm Electronic Electronic Components

Product Details

• Measuring element
  metallic thin film cell
• Power-on delay time [s]
  0.3
• Media
  liquids and gases
• Type of pressure
  relative pressure
• Type of short-circuit protection
  yes (non-latching)
• Current consumption [mA]
  < 35
• Output signal
  switching signal; IO-Link; (configurable)
• Switching frequency DC [Hz]
  < 170
• System
  gold-plated contacts
• Electrical design
  PNP/NPN
• Overload protection
  yes
• Process connection
  threaded connection 1/4" NPT external thread
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of digital outputs
  2
• Pressure rating
  800 bar 11580 psi 80 Mpa
• Measuring range
  0...400 bar 0...5800 psi 0...40 MPa
• Total number of outputs
  2
• Min. bursting pressure
  1700 bar 24650 psi 170 MPa
• MAWP (for applications according to CRN)
  800 bar 11580 psi 80 MPa
• Protection class
  III
Output function
normally open / closed; (configurable)
Reverse polarity protection
yes
Permanent current rating of switching output DC [mA]
150; (200 (...60 °C) 250 (...40 °C))
Application
for industrial applications
Integrated watchdog
yes
Max. voltage drop switching output DC [V]
2.5
Number of inputs and outputs
Number of digital outputs: 2
Short-circuit protection
yes
Medium temperature [°C]
-25...80
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
