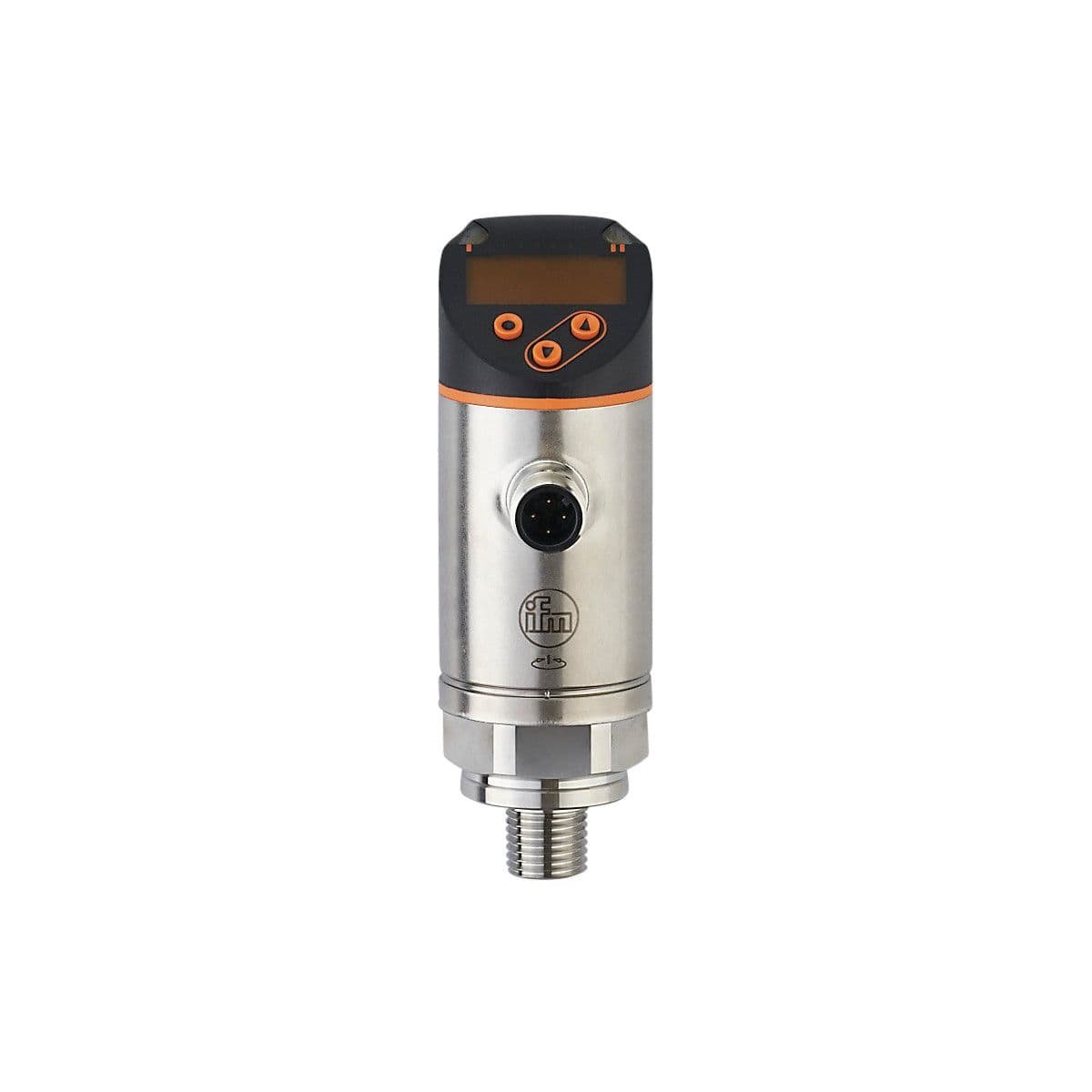

PN7694 ifm Electronic Electronic Components

Product Details

• Media
  liquids and gases
• Protection class
  III
• Max. voltage drop switching output DC [V]
  2.5
• Measuring range
  -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Electrical design
  PNP/NPN
• Overload protection
  yes
• Application
  for industrial applications
• Reverse polarity protection
  yes
• Output function
  normally open / closed; (configurable)
• Medium temperature [°C]
  -25...80
• MAWP (for applications according to CRN)
  50 bar 725 psi 5 MPa
• Type of short-circuit protection
  yes (non-latching)
• Type of pressure
  relative pressure; vacuum
• Power-on delay time [s]
  < 0.3
• Output signal
  switching signal; IO-Link; (configurable)
• Permanent current rating of switching output DC [mA]
  150; (200 (...60 °C) 250 (...40 °C))
• Measuring element
  ceramic-capacitive pressure measuring cell
• Current consumption [mA]
  < 35
• Number of digital outputs
  2
Min. bursting pressure
150 bar 2175 psi 15 MPa
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Total number of outputs
2
Process connection
threaded connection 1/4" NPT external thread
Number of inputs and outputs
Number of digital outputs: 2
System
gold-plated contacts
Integrated watchdog
yes
Short-circuit protection
yes
Pressure rating
75 bar 1087 psi 7.5 Mpa
Switching frequency DC [Hz]
< 170
